Vehicle Exploded View - APRILIA SR 50 H20 New IE Carb 2004-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

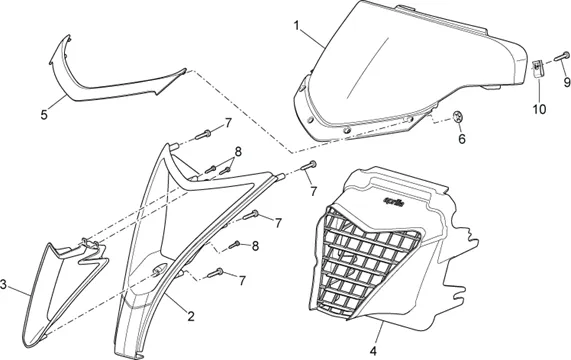

Chassis : 28.07 CARROSSERIE AV. II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/734/SR_50_H20_New_IE_Carb_2004-2009_28.07.PNG)
1 |
AP8179906 - COVERING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/9/8/2/8/img/59828.jpg)
1 |
COIFFE FRONT OEM PIAGGIO 50 SR H2O APRILIA 2004 >-AP82680596 More informationQuantity required : 1 |
||||||
|
1 |
AP8268297 - COFANO ANT.V.NERO APRILIA More informationQuantity required : 1 |
||||||
|
1 |
AP8268340 - COFANO ANT.V.BLU LIMIT. More informationQuantity required : 1 |
||||||
|
1 |
AP8268728 - QUEUE, ROUGE More informationQuantity required : 1 |
||||||
|
1 |
AP8268879 - COFFRE SILVER More informationQuantity required : 1 |
||||||
|
1 |
AP8268890 - COFFRE AV ORANGE More informationQuantity required : 1 |
||||||
|
1 |
AP8268898 - COFFRE, BLANC More informationQuantity required : 1 |
||||||
|
1 |
AP8268991 - COFFRE AV., NOIR More informationQuantity required : 1 |
||||||
|
1 |
AP8269183 - COFFRE, BLANC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/9/9/7/9/img/59979.jpg)
2 |
AP8268292-CORNICE GRIGLIA NERA More informationQuantity required : 1 |
||||||
|
2 |
AP8269187-ENJOLIV. GRILLE More informationQuantity required : 1 |
||||||
|
3 |
AP8268054-GRIGLIA RADIATORE More informationQuantity required : 1 |
||||||
|
4 |
AP8268078-CONVOGLIATORE RADIATORE * More informationQuantity required : 1 |
||||||
|
5 |
AP8179907-COVERING RED More informationQuantity required : 1 |
||||||
|
5 |
AP8268077 - MASCHERINA COFANO More informationQuantity required : 1 |
||||||
|
5 |
AP8268298-MASCHERINA COFANO V. ARAN. SPEED More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/9/9/9/0/img/59990.jpg)
5 |
AP82683096-MASCHERINA COFANO V. BIANCO AP. More informationQuantity required : 1 |
||||||
|
5 |
AP8268341 - MASCHERINA COFANO V.BLU LIMIT. More informationQuantity required : 1 |
||||||
|
5 |
AP8268567-MASCHERINA COFANO V. SILV. MIRR. More informationQuantity required : 1 |
||||||
|
5 |
AP8268577-MASCHERINA COFANO V. NERO DIAB. More informationQuantity required : 1 |
||||||
|
5 |
AP8268587 - MASCHERINA COFANO V.GIALLO LIM More informationQuantity required : 1 |
||||||
|
5 |
AP8268873-COVER SUP. UNDERSEAT COMPARTMENT, SILVER More informationQuantity required : 1 |
||||||
|
5 |
AP8268886-COVER SUP. UNDERSEAT COMPARTMENT, ORANGE More informationQuantity required : 1 |
||||||
|
5 |
AP8268984 - CACHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
6 |
WASHER ELASTIC (5) OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150450 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
7 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/9/img/71879.jpg)
8 |
SCREW CRUCIFORME (2. 9X12) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150421 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/5/img/71975.jpg)
9 |
SCREW PARKER (4, 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152351 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/5/7/img/72157.jpg)
10 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-AP8202449 More informationQuantity required : 2 |
