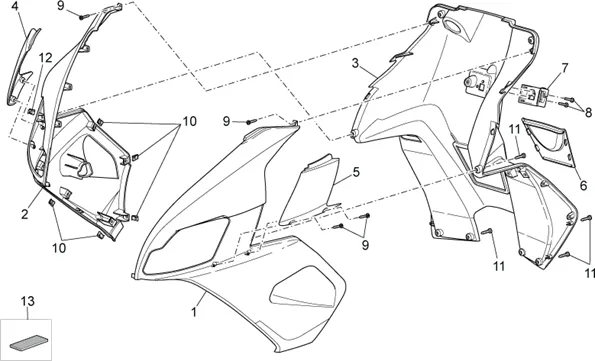

Chassis : 28.08 CARROSSERIE AV. III
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/734/SR_50_H20_New_IE_Carb_2004-2009_28.08.PNG)
1 |
AP8268981 - TABLIER AVANT PEINT, VERT More informationQuantity required : 1 |
||||||
|
1 |
AP8269181 - SEMI TABLIER More informationQuantity required : 1 |
||||||
|
1 |
AP8268346 - TABLIER AVANT G., ROUGE More informationQuantity required : 1 |
||||||
|
1 |
AP8268052 - SEMISCUDO SX More informationQuantity required : 1 |
||||||
|
1 |
AP8268296 - SEMISCUDO SX V.ARANCIO SPEED More informationQuantity required : 1 |
||||||
|
1 |
AP8268308 - SEMISCUDO SX V.BIANCO APRILIA More informationQuantity required : 1 |
||||||
|
1 |
AP8268338 - SEMISCUDO SX V.ROSSO FLUO More informationQuantity required : 1 |
||||||
|
1 |
AP8179838 - TABLIER AVANT PEINT G. BLANC More informationQuantity required : 1 |
||||||
|
1 |
AP8268565 - SEMISCUDO SX V.SILV.MIR. More informationQuantity required : 1 |
||||||
|
1 |
AP8268575 - SEMISCUDO SX V.NERO DIABLO More informationQuantity required : 1 |
||||||
|
1 |
AP8268585 - SEMISCUDO SX V.GIALLO LIMONE More informationQuantity required : 1 |
||||||
|
1 |
AP8268862 - TABLIER AVANT PEINT NOIR More informationQuantity required : 1 |
||||||
|
1 |
AP8268870 - TABLIER AVANT PEINT, SILVER More informationQuantity required : 1 |
||||||
|
1 |
AP8268883 - TABLIER AV.V.ORAN. More informationQuantity required : 1 |
||||||
|
1 |
AP8268892 - TABLIER AV BLANC More informationQuantity required : 1 |
||||||
|
2 |
AP8179903 - SHIELD RED More informationQuantity required : 1 |
||||||
|
2 |
AP8268051 - SEMISCUDO DX More informationQuantity required : 1 |
||||||
|
2 |
AP8268295 - SEMISCUDO DX V.ARANCIO SPEED More informationQuantity required : 1 |
||||||
|
2 |
AP8268307 - SEMISCUDO DX V.BIANCO APRILIA More informationQuantity required : 1 |
||||||
|
2 |
AP8268337 - SEMISCUDO DX V.ROSSO FLUO More informationQuantity required : 1 |
||||||
|
2 |
AP8268564 - SEMISCUDO DX V.SILV.MIR. More informationQuantity required : 1 |
||||||
|
2 |
AP8268574 - SEMISCUDO DX V.NERO DIABLO More informationQuantity required : 1 |
||||||
|
2 |
AP8268584 - SEMISCUDO DX V.GIALLO LIMONE More informationQuantity required : 1 |
||||||
|
2 |
AP8268861 - TABLIER AVANT PEINT NOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/0/3/0/5/img/60305.jpg)
2 |
FRONT SHIELD - RIGHT "PIAGGIO GENUINE PART" APRILIA SR H2O 2004>2009 GREY -AP8268869 More informationQuantity required : 1 |
||||||
|
2 |
AP8268882 - TABLIER AV.V.ORAN. More informationQuantity required : 1 |
||||||
|
2 |
AP82683136-TAIL CAR. D WHITE More informationQuantity required : 1 |
||||||
|
2 |
AP8268980 - TABLIER AVANT PEINT, VERT More informationQuantity required : 1 |
||||||
|
2 |
AP8269180 - TABLIER AVANT PEINT, NOIR REPLICA SBK More informationQuantity required : 1 |
||||||
|
3 |
AP8268330-CONTRE-LEG SHIELD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/9/8/1/8/img/59818.jpg)
4 |
DEFLECTOR AIR FRONT RIGHT BLACK OEM PIAGGIO APRILIA 50 SR H2O 2004 >-AP8268048 More informationQuantity required : 1 |
||||||
|
4 |
AP8269189 - DEFLECTEUR AIR D. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/9/8/2/3/img/59823.jpg)
5 |
DEFLECTOR AIR FRONT LEFT BLACK OEM PIAGGIO APRILIA 50 SR H2O 2004 > 2018-AP8268053 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/0/4/8/3/img/60483.jpg)
5 |
DEFLECTOR AIR LEFT RED OEM APRILIA 50 SR 2004 > 2014-AP8269190 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/9/8/4/5/img/59845.jpg)
6 |
HATCH DE VISITE N- DE SERIE OEM PIAGGIO-AP8268082 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/5/img/72135.jpg)
7 |
ACROCHE CASQUE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER APRILIA-AP8201534 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/0/img/71880.JPG)
8 |
SCREW (4, 2X25) OEM PIAGGIO COMMON A LA RANGE-AP8150423 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
9 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/5/7/img/72157.jpg)
10 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-AP8202449 More informationQuantity required : 20 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/5/img/71975.jpg)
11 |
SCREW PARKER (4, 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152351 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/7/img/71177.jpg)
12 |
NUT SHEET METAL (M4) OEM PIAGGIO COMMON A LA RANGE-AP8102381 More informationQuantity required : 4 |
||||||
|
13 |
AP8117073-ADHESIVE SPONGE More informationQuantity required : 1 |
