Vehicle Exploded View - APRILIA SR 50 H20 New IE Carb 2004-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

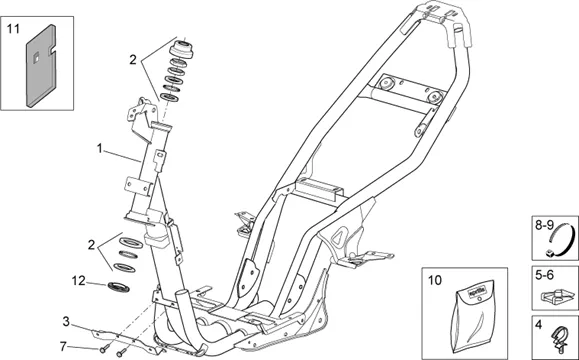

Chassis : 28.01 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/734/SR_50_H20_New_IE_Carb_2004-2009_28.01.PNG)
1 |
8530325-FRAME More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/1/5/9/img/57159.jpg)
2 |
SET OF STEERING OEM PIAGGIO APRILIA 50 SR H2O 2004 >-AP82230606 More informationQuantity required : 1 |
||||||
|
3 |
AP8234233-BRACKET PASSARUOTA More informationQuantity required : 1 |
||||||
|
4 |
AP8221310-GUIDE-CABLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
5 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
6 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/6/5/img/67365.jpg)
7 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-598839 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/4/img/71394.jpg)
8 |
HOSE CLAMP NYLON TYPE RILSAN 4, 5X180MM OEM PIAGGIO COMMON A LA RANGE-AP8120416 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/1/img/71411.jpg)
9 |
HOSE CLAMP NYLON TYPE RILSAN 4, 5X280MM OEM PIAGGIO COMMON A LA RANGE-AP8120657 More informationQuantity required : 1 |
||||||
|
10 |
852232-TOOLS KIT ROLL More informationQuantity required : 1 |
||||||
|
10 |
852233-TOOLS KIT ROLL More informationQuantity required : 1 |
||||||
|
11 |
AP8217040-PROTEZIONE FUSTELLATA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/9/8/5/img/56985.JPG)
12 |
PROTECTOR POUSSIERE SET OF STEERING LOWER OEM APRILIA SR50-AP8220710 More informationQuantity required : 1 |
