Vehicle Exploded View - APRILIA SR 50 H20 New Ditech 04-07
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

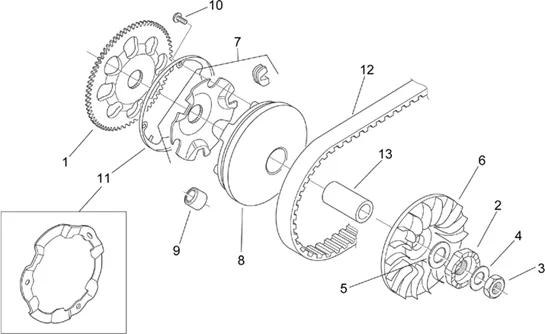

Moteur : 29.43 VARIATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/578/SR_50_H20_New_Ditech_04-07_29.43.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/8/8/1/img/44881.jpg)
1 |
COURONNE DE STARTER MOTOR OEM PIAGGIO APRILIA 50 MOJITO, SCARABEO, SR DITECH 2000 > 2007-AP3QEA000764 More informationQuantity required : 1 |
||||||
2 |
AP3TDA000485 - RONDELLE DENTEE DEMARRAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/5/img/71915.jpg)
3 |
NUT TH (12X1. 25) OEM PIAGGIO COMMON A LA RANGE-AP8152135 More informationQuantity required : 1 |
||||||
|
3 |
NUT TH (12X1. 25) OEM PIAGGIO COMMON A LA RANGE-AP8152135 More informationQuantity required : 1 |
||||||
|
4 |
Ressort à godet |
||||||
|
5 |
AP3TAN000172-SPACER More informationQuantity required : 1 |
||||||
|
6 |
AP3MEA000620 - POULIE PRIMAIRE FIXE More informationQuantity required : 1 |
||||||
|
7 |
AP5RMR000235-PLATEAU A AXES More informationQuantity required : 1 |
||||||
|
8 |
AP5RMR000234 - POULIE PRIM.MOBILE; More informationQuantity required : 1 |
||||||
|
9 |
AP2MEA000805-RULLINO (11, 3 GR.) More informationQuantity required : 6 |
||||||
|
9 |
AP2MEA000828-RULLINO (6, 8 GR.) More informationQuantity required : 6 |
||||||
|
10 |
AP3MEN000302 - VIS More informationQuantity required : 3 |
||||||
|
11 |
AP3MEA000715-COVER PULLEY More informationQuantity required : 1 |
||||||
|
11 |
AP3MEA000840-COVER PULEGGIA ANT. MOBILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/1/0/img/71110.jpg)
12 |
BELT OEM PIAGGIO 50 SR H2O DITECH APRILIA 2000 > 2007-AP2MCA000014 More informationQuantity required : 1 |
||||||
|
13 |
AP3MEN000255-BUSH More informationQuantity required : 1 |
||||||
|
14 |
AP3MAN000087 - ENTRETOISE More informationQuantity required : 1 |
All the exploded views of this vehicle
-
