Vehicle Exploded View - APRILIA SR 50 H20 New Ditech 04-07
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

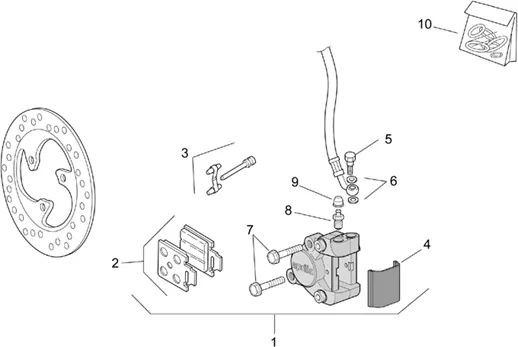

Chassis : 28.27 PINCE FREIN AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/578/SR_50_H20_New_Ditech_04-07_28.27.PNG)
1 |
AP8113577-PINCE BRAKE FRONT More informationQuantity required : 1 |
||||||
|
1 |
AP8133735-PINZA BRAKE ANT. More informationQuantity required : 1 |
||||||
|
2 |
AP8113638 - PLAQUETTES-PAIRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/1/8/img/72218.jpg)
2 |
BRAKE PAD OEM PIAGGIO APRILIA 50 SR H2O 2003 > AV-AP8213571 More informationQuantity required : 1 |
||||||
|
3 |
AP8213227-STUD + SPRING PINCE More informationQuantity required : 1 |
||||||
|
3 |
AP8213572-PERNO + MOLLA PINZA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/9/8/3/img/45983.jpg)
4 |
COVER BRAKE CALIPER FRONT OEM APRILIA 50 SR 1997 > 2014-AP8113640 More informationQuantity required : 1 |
||||||
|
4 |
AP8213573-COVER PINZA BRAKE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
5 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
6 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/1/img/71951.jpg)
7 |
SCREW FLANGE TH (8X35) OEM PIAGGIO COMMON A LA RANGE-AP8152289 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/5/img/71285.jpg)
8 |
SCREW OF PURGE OEM PIAGGIO COMMON A LA RANGE SCOOTER/MAXI SCOOTER APRILIA-AP8113006 More informationQuantity required : 1 |
||||||
|
8 |
AP8213574-SPURGO ARIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/4/img/71284.jpg)
9 |
CAPUCHON RENIFLARD BRAKE CALIPER OROGINE PIAGGIO COMMON A LA RANGE 2008 <-AP8113005 More informationQuantity required : 1 |
||||||
|
9 |
AP8213575-CAPPUCCIO SPURGO ARIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/9/1/2/img/45912.jpg)
10 |
KIT ENTRETIEN BRAKE CALIPER FRONT GRIMECA OEM APRILIA 50 SR H2O 2000 > 2013, 125 RS 1999 > 2005-AP8113122 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/5/0/8/img/56508.jpg)
10 |
KIT ENTRETIEN BRAKE CALIPER FRONT HENG TONG OEM APRILIA 50 SR H2O 2003 >-AP8213576 More informationQuantity required : 1 |
