Vehicle Exploded View - APRILIA SR 50 H20 New Ditech 04-07
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

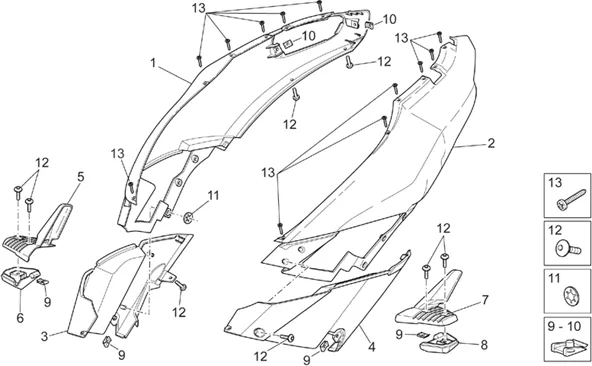

Chassis : 28.13 CARROSSERIE POSTERIEURE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/578/SR_50_H20_New_Ditech_04-07_28.13.PNG)
1 |
AP8268049 - SEMICODONE DX More informationQuantity required : 1 |
||||||
|
1 |
AP8268299 - SEMICODONE DX V.ARANCIO SPEED More informationQuantity required : 1 |
||||||
|
1 |
AP8268310 - SEMICODONE DX V.BIANCO APR. More informationQuantity required : 1 |
||||||
|
1 |
AP8268342 - SEMICODONE DX V.BLU LIMITED More informationQuantity required : 1 |
||||||
|
2 |
AP8268050-SEMICODONE SX More informationQuantity required : 1 |
||||||
|
2 |
AP8268300 - SEMICODONE SX V.ARANCIO SPEED More informationQuantity required : 1 |
||||||
|
2 |
AP8268311-SEMICODONE SX V. BIANCO APR. More informationQuantity required : 1 |
||||||
|
2 |
AP8268343 - SEMICODONE SX V.BLU LIMITED More informationQuantity required : 1 |
||||||
|
3 |
AP8268075-SEMIREGGISELLA DX More informationQuantity required : 1 |
||||||
|
4 |
AP8268076-SEMIREGGISELLA SX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/9/8/4/4/img/59844.jpg)
5 |
RIGHT PASSENGER FOOTREST "PIAGGIO GENUINE PART" APRILIA 50 SR H2O -AP8268081 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/5/5/5/5/img/155555.jpg)
6 |
FOND OF REST FOOT RIGHT OEM APRILIA 50 SR H2O 2004 >-1B005129 More informationQuantity required : 1 |
||||||
|
6 |
FOND OF REST FOOT RIGHT OEM APRILIA 50 SR H2O 2004 >-1B005129 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/9/9/6/7/img/59967.jpg)
7 |
PASSENGER FOOTREST LEFT OEM PIAGGIO APRILIA 50 SR H2O 2004 > 2014-AP8268262 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/2/6/8/img/151268.jpg)
8 |
FOND OF REST FOOT LEFT OEM APRILIA 50 SR H2O 2004 >-1B005128 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
9 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/7/img/71177.jpg)
10 |
NUT SHEET METAL (M4) OEM PIAGGIO COMMON A LA RANGE-AP8102381 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
11 |
WASHER ELASTIC (5) OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150450 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
12 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
13 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 12 |
