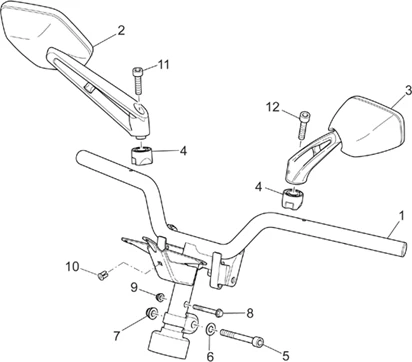

Chassis : 28.17 GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/578/SR_50_H20_New_Ditech_04-07_28.17.PNG)
1 |
HANDLEBAR OEM PIAGGIO APRILIA 50 SR H2O 2004 > 2018-AP8218638 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/4/8/2/img/55482.jpg)
2 |
RIGHT MIRROR OEM PIAGGIO APRILIA 50 SR H2O 2004 > 2009, 50 SR CARBU 2014 >-AP8202394 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/4/8/3/img/55483.jpg)
3 |
LEFT MIRROR OEM PIAGGIO APRILIA 50 SR H2O 2004 > 2009, 50 SR CARBU 2014 >-AP8202395 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/9/9/5/8/img/59958.jpg)
4 |
BASE DE MIRROR OEM APRILIA 50 SR 2004 >-AP8268250 More informationQuantity required : 2 |
||||||
|
5 |
AP8150086-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/1/img/71811.jpg)
6 |
WASHER PLATE (10, 5X21X2) OEM PIAGGIO COMMON A LA RANGE-AP8150020 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
7 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/2/img/71952.jpg)
8 |
SCREW FLANGE TH (8X40) OEM PIAGGIO COMMON A LA RANGE-AP8152290 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
9 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/9/1/img/71191.jpg)
10 |
RIVET EN PLASTIQUE CARROSSERIE OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8102671 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/0/3/6/img/51036.jpg)
11 |
SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8152477 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/3/img/71823.jpg)
12 |
SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8150107 More informationQuantity required : 1 |
