Vehicle Exploded View - APRILIA SR 50 H20 New Ditech 04-07
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

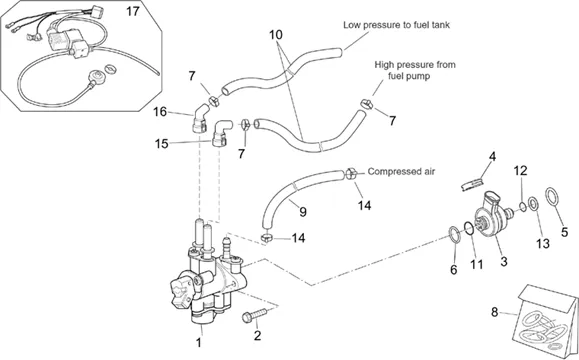

Moteur : 29.41 GROUP INJECTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/578/SR_50_H20_New_Ditech_04-07_29.41.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/8/4/img/69184.jpg)
1 |
INJECTEUR OEM PIAGGIO 50 NRG INJECTION 2003 >/GILERA 50 RUNNER INJECTION 2003 >/APRILIA 50 SR DITECH 2003 >-841308 More informationQuantity required : 1 |
||||||
2 |
Vis |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/4/5/img/68845.jpg)
3 |
AIR INJECTOR "PIAGGIO GENUINE PART" 50 NRG INJECTION/GILERA 50 RUNNER INJECTION/APRILIA 50 SR INJECTION -829480 More informationQuantity required : 1 |
||||||
|
4 |
AP3AVN000245 - CAOUTCHOUC DE FERM. More informationQuantity required : 1 |
||||||
|
5 |
AP2EAN000258-O-RING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/1/6/img/68916.jpg)
6 |
O-RING INJECTEUR (14. 4X18. 2X2. 5) OEM PIAGGIO NRG 2005 > 2011/GILERA RUNNER 2005 > 2011/APRILIA SR50 2004 > 2014-830433 More informationQuantity required : 1 |
||||||
|
7 |
Collier clic |
||||||
|
8 |
AP5RZR000232 - KIT O-RING; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/8/7/0/img/62870.jpg)
9 |
COMPRESSOR HIGH PRESSURE PIPE "PIAGGIO GENUINE PART" APRILIA 50 SR H2O, SCARABEO H2O -CM223702 More informationQuantity required : 1 |
||||||
|
10 |
COMPRESSOR HIGH PRESSURE PIPE "PIAGGIO GENUINE PART" APRILIA 50 SR H2O, SCARABEO H2O -CM223702 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/0/0/7/img/45007.jpg)
11 |
O-RING UPPER INJECTEUR OEM PIAGGIO APRILIA 50 SR H2O 2000 > 2007-AP5RAR000109 More informationQuantity required : 1 |
||||||
|
12 |
INJECTOR O'RING GASKET (LOWER) "PIAGGIO GENUINE PART" APRILIA 50 SR H2O -AP5RAR000108 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/4/img/69104.jpg)
13 |
GASKET D'INJECTEUR D'AIR OEM PIAGGIO 50 NRG INJECTION/GILERA 50 RUNNER INJECTION/APRILIA 50 SR INJECTION-834176 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/4/img/72874.jpg)
14 |
CLAMP (12-22MM) SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE-CM001913 More informationQuantity required : 2 |
||||||
|
15 |
AP8224654-CONNETTORE RAPIDO 90 More informationQuantity required : 1 |
||||||
|
16 |
AP8224550-CONNETTORE RAPIDO 45 " More informationQuantity required : 1 |
||||||
|
17 |
AP8276090 - KIT SPURGO CONDENSA DITECH More informationQuantity required : 1 |
