Vehicle Exploded View - APRILIA SHIVER 750 GT 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

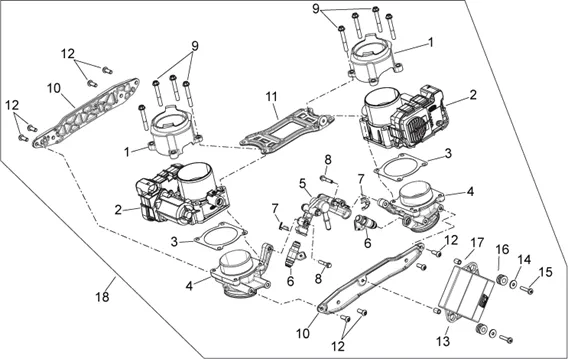

Moteur : 29.52 CORPS À PAPILLON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/740/Shiver_750_GT_2009_29.52.PNG)
1 |
872174-BRACKET FILTER More informationQuantity required : 2 |
||||||
|
2 |
1A023630-THROTTLE BODY More informationQuantity required : 2 |
||||||
|
2 |
1A023630-THROTTLE BODY More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/2/4/img/70424.jpg)
3 |
GASKET BODY THROTTLE BODY OEM APRILIA 750-900-1200 SHIVER, DORSODURO/MOTO GUZZI AUDACE, CALIFORNIA, V85-872264 More informationQuantity required : 2 |
||||||
|
4 |
872173 - RACCORD D'ADMISSION More informationQuantity required : 2 |
||||||
|
5 |
873218-BRACKET More informationQuantity required : 1 |
||||||
|
6 |
5848135-BRACKET INIECTOR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/1/0/3/img/39103.jpg)
7 |
CLIPS DE RETENU INJECTEUR OEM PIAGGIO COMMON A LA RANGE-849898 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
8 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/5/img/72705.jpg)
9 |
SCREW FLANGE TH (6X60) OEM PIAGGIO COMMON A LA RANGE-B016425 More informationQuantity required : 8 |
||||||
|
10 |
872176-FLANGE More informationQuantity required : 2 |
||||||
|
11 |
872177-FLANGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/8/1/img/70481.jpg)
12 |
SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-873433 More informationQuantity required : 8 |
||||||
|
13 |
640268 - CENTRALE DRIVE BY WIRE More informationQuantity required : 1 |
||||||
|
14 |
224664-WASHER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/5/img/65385.jpg)
15 |
SCREW CRUCIFORME (5X25) OEM PIAGGIO COMMON A LA RANGE-015597 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/3/2/img/65932.jpg)
16 |
RUBBER/SILENBLOC (8MM) OEM PIAGGIO COMMON A LA RANGE-217163 More informationQuantity required : 2 |
||||||
|
17 |
217164 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
18 |
872180 - CORPS A PAPILLON More informationQuantity required : 1 |
