Vehicle Exploded View - APRILIA SHIVER 750 GT 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

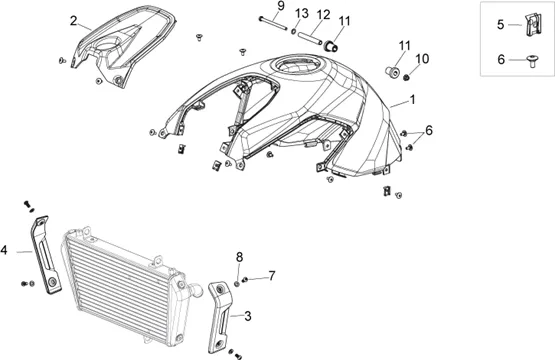

Chassis : 28.11 CARROSSERIE CENTRALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/740/Shiver_750_GT_2009_28.11.PNG)
1 |
85166100XE4 - CACHE-RESERVOIR, SILVER More informationQuantity required : 1 |
||||||
|
1 |
85166100XN7 - CACHE-RESERVOIR, NOIR More informationQuantity required : 1 |
||||||
|
1 |
85166100XR5 - CACHE-RESERVOIR, ROUGE More informationQuantity required : 1 |
||||||
|
2 |
COVER/COVER TANK OEM APRILIA 750-900 SHIVER-2B003881 More informationQuantity required : 1 |
||||||
|
2 |
COVER/COVER TANK OEM APRILIA 750-900 SHIVER-2B003881 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/0/7/4/5/img/200745.jpg)
3 |
PROTECTOR DE RADIATOR (PAIRE) OEM PIAGGIO APRILIA 750 SHIVER 2007 >, 900 SHIVER 2017 >-2B010474 More informationQuantity required : 1 |
||||||
|
3 |
PROTECTOR DE RADIATOR (PAIRE) OEM PIAGGIO APRILIA 750 SHIVER 2007 >, 900 SHIVER 2017 >-2B010474 More informationQuantity required : 1 |
||||||
|
4 |
PROTECTOR DE RADIATOR (PAIRE) OEM PIAGGIO APRILIA 750 SHIVER 2007 >, 900 SHIVER 2017 >-2B010474 More informationQuantity required : 1 |
||||||
|
4 |
PROTECTOR DE RADIATOR (PAIRE) OEM PIAGGIO APRILIA 750 SHIVER 2007 >, 900 SHIVER 2017 >-2B010474 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
5 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
6 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/2/0/img/50920.jpg)
7 |
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8150537 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/6/8/img/50868.jpg)
8 |
WASHER PLATE (6X12, 4) OEM PIAGGIO COMMON A LA RANGE-AP8150380 More informationQuantity required : 4 |
||||||
|
9 |
AP8150459-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
10 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 1 |
||||||
|
11 |
AP8123934-RUBBER More informationQuantity required : 2 |
||||||
|
12 |
AP8134419-BUSH ATTACHE TANK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/7/img/71807.jpg)
13 |
WASHER PLATE (6, 4X12, 5) OEM PIAGGIO COMMON A LA RANGE-AP8150014 More informationQuantity required : 1 |
