Vehicle Exploded View - APRILIA SHIVER 750 GT 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

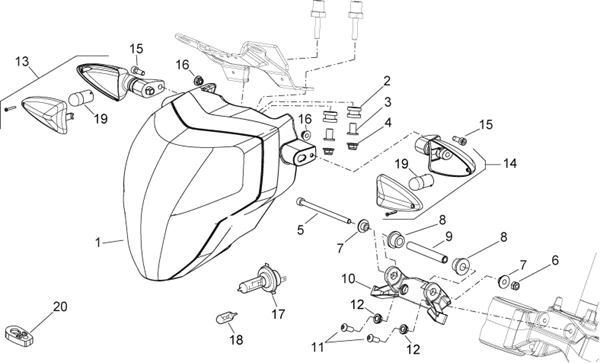

Chassis : 28.30 FEUX AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/740/Shiver_750_GT_2009_28.30.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/1/6/6/img/39166.jpg)
1 |
LAMP UNIT/HEADLAMP/HEADLAMP OEM APRILIA 750 SHIVER 2007 > 2016-851637 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/6/9/img/56869.jpg)
2 |
RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8220370 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/8/img/46928.jpg)
3 |
BUSH EN T OEM PIAGGIO COMMON A LA RANGE-AP8121725 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
4 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/4/7/img/66547.jpg)
5 |
SCREW BTR (6X100) OEM PIAGGIO COMMON A LA RANGE-478171 More informationQuantity required : 1 |
||||||
|
6 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/1/9/img/72319.jpg)
7 |
WASHER EN T (6X17X6) OEM PIAGGIO COMMON A LA RANGE-AP8221349 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/3/9/img/56839.jpg)
8 |
RUBBER OEM APRILIA COMMON A LA RANGE-AP8220192 More informationQuantity required : 2 |
||||||
9 |
AP8134419-BUSH ATTACHE TANK More informationQuantity required : 1 |
||||||
|
10 |
851592-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/3/img/71913.jpg)
11 |
SCREW BTR HEAD BOMBEE (6X15) OEM PIAGGIO COMMON A LA RANGE-AP8152108 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/0/7/img/57007.jpg)
12 |
BUSH OEM PIAGGIO COMMON A LA RANGE-AP8221129 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/8/4/4/img/39844.jpg)
13 |
FRONT RIGHT INDICATOR OEM PIAGGIO APRILIA 750-900 DORSODURO, SHIVER, 1200 CAPONORD, DORSODURO-854555 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/8/4/5/img/39845.jpg)
14 |
FRONT LEFT INDICATOR OEM PIAGGIO APRILIA 750 DORSODURO 2008 >, 900 DORSODURO 2017 >, 750 SHIVER 2007 >, 900 SHIVER 2017 >, 1200 CAPONORD 2013 >, DORSODURO 2010 >-854556 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/5/img/71935.jpg)
15 |
SCREW BTR HEAD BOMBEE (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152268 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
16 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/7/2/img/66272.jpg)
17 |
AMPOULE/LAMPE 12V 55W H7 OEM PIAGGIO COMMON A LA RANGE-294353 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
18 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE OEM PIAGGIO COMMON A LA RANGE-2920225 More informationQuantity required : 2 |
||||||
|
19 |
AMPOULE/LAMPE 12V 10W RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-AP8127489 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/6/2/6/img/41626.jpg)
20 |
SPACER SPECIALE ECLAIRAGE FRONT OEM APRILIA 750 SHIVER 2007 > 2010-890094 More informationQuantity required : 1 |
