Vehicle Exploded View - APRILIA SHIVER 750 GT 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

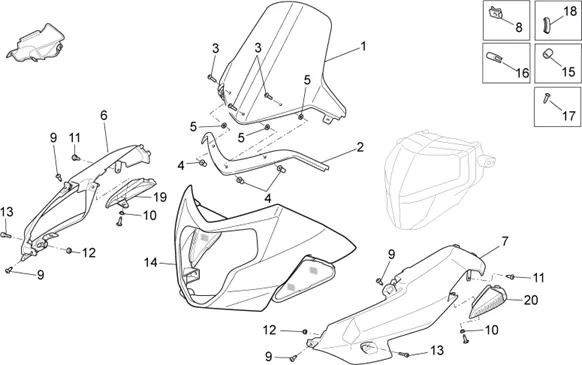

Chassis : 28.57 CARROSSERIE AV. - COUPOLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/740/Shiver_750_GT_2009_28.57.PNG)
1 |
890809 - VITRE COUPOLE More informationQuantity required : 1 |
|||||||||
|
2 |
893731-DECAL More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/6/img/71936.jpg)
3 |
SCREW BTR HEAD BOMBEE (5X20) OEM PIAGGIO COMMON A LA RANGE-AP8152269 More informationQuantity required : 5 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/1/img/71401.jpg)
4 |
NUT (M5) WITH INSERT RUBBER OEM PIAGGIO COMMON A LA RANGE DERBI, APRILIA ET MOTO-GUZZI-AP8120531 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/4/8/6/img/164486.jpg)
5 |
WASHER PLATE NYLON (10X5. 3X1) OEM PIAGGIO COMMON A LA RANGE-AP8120591 More informationQuantity required : 3 |
|||||||||
|
6 |
89082000XE4 - CONVOYEUR D, SILVER More informationQuantity required : 1 |
|||||||||
|
6 |
89082000XN7 - CONVOYEUR D, NOIR More informationQuantity required : 1 |
|||||||||
|
6 |
89082000XR5 - CONVOYEUR D, ROUGE More informationQuantity required : 1 |
|||||||||
|
7 |
89082100XE4 - CONVOYEUR G, SILVER More informationQuantity required : 1 |
|||||||||
|
7 |
89082100XN7 - CONVOYEUR G, NOIR More informationQuantity required : 1 |
|||||||||
|
7 |
89082100XR5 - CONVOYEUR G, ROUGE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
8 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 10 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
9 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 10 |
|||||||||
|
9 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 10 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
10 |
BUSH/SPACER (6) OEM PIAGGIO COMMON A LA RANGE-AP8121032 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
11 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
12 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150430 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/4/img/71824.jpg)
13 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8150137 More informationQuantity required : 2 |
|||||||||
|
14 |
89081000XE4 - AVANT CARENAGE, SILVER More informationQuantity required : 1 |
|||||||||
|
14 |
89081000XN7 - AVANT CARENAGE, NOIR More informationQuantity required : 1 |
|||||||||
|
14 |
89081000XR5 - AVANT CARENAGE, ROUGE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/4/img/71414.jpg)
15 |
BUFFER/RUBBER OEM PIAGGIO 50 GILERA SMT, RCR 2018 >/DERBI SENDA 2018 >-AP8120712 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/5/7/img/72157.jpg)
16 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-AP8202449 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/9/img/71869.jpg)
17 |
SCREW PARKER (4, 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8150362 More informationQuantity required : 4 |
|||||||||
|
18 |
AP8144707-GUARNIZIONE TELAIO More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/7/8/7/img/41787.jpg)
19 |
890822-PROTECTOR-CHOCS DTE More informationQuantity required : 1 |
|||||||||
|
20 |
890823 - PARE-CHOCS GCHE More informationQuantity required : 1 |
|||||||||
