Vehicle Exploded View - APRILIA SHIVER 750 GT 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

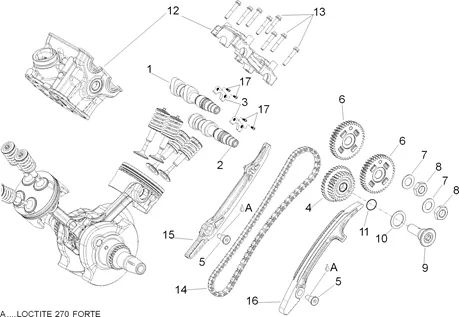

Moteur : 29.45 DISTRIBUTION CYLINDRE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/740/Shiver_750_GT_2009_29.45.PNG)
1 |
82979R-CAMSHAFT More informationQuantity required : 1 |
||||||
|
2 |
82980R-CAMSHAFT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/5/0/9/img/41509.jpg)
3 |
FLANGE/PLATE SHAFT A CAME OEM APRILIA 750-900 DORSODURO, SHIVER-878560 More informationQuantity required : 2 |
||||||
|
3 |
FLANGE/PLATE SHAFT A CAME OEM APRILIA 750-900 DORSODURO, SHIVER-878560 More informationQuantity required : 2 |
||||||
|
4 |
8745964-GEAR More informationQuantity required : 1 |
||||||
|
5 |
974228-SCREW More informationQuantity required : 2 |
||||||
|
6 |
8499104-GEAR TIMING More informationQuantity required : 2 |
||||||
|
7 |
849771-WASHER More informationQuantity required : 2 |
||||||
|
8 |
849722-NUT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/0/3/5/img/139035.jpg)
9 |
SCREW SPROCKET DE TIMING OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1200 CAPONORD, DORSODURO-1A006352 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/0/9/5/img/39095.jpg)
10 |
WASHER GEAR TIMING OEM APRILIA 750-900-1200 CAPONORD, SHIVER, DORSODURO-849817 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/3/6/0/img/41360.jpg)
11 |
O-RING OEM APRILIA COMMON A LA RANGE-873233 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/0/0/8/img/39008.jpg)
12 |
CYLINDER HEAD- WATER PUMP 1 - "PIAGGIO GENUINE PART" APRILIA 750 DORSODURO 2008>2016, 750 SHIVER 2007>2016 -83036R4 More informationQuantity required : 1 |
||||||
|
12 |
875413-CYLINDER HEAD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/5/0/6/img/41506.jpg)
13 |
SCREW TORX HEAD BOMBEE (6X40) OEM PIAGGIO COMMON A LA RANGE-878439 More informationQuantity required : 8 |
||||||
|
14 |
849827-CHA? NE DE TIMING More informationQuantity required : 1 |
||||||
|
15 |
871798-DOIGT More informationQuantity required : 1 |
||||||
|
16 |
871748-ROD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/3/9/4/img/41394.jpg)
17 |
SCREW OF BUTEE CAMSHAFT OEM APRILIA 750 DORSODURO, SHIVER-874185 More informationQuantity required : 4 |
