Vehicle Exploded View - DERBI SENDA SM 50 SENDA SM 2002 RACER
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

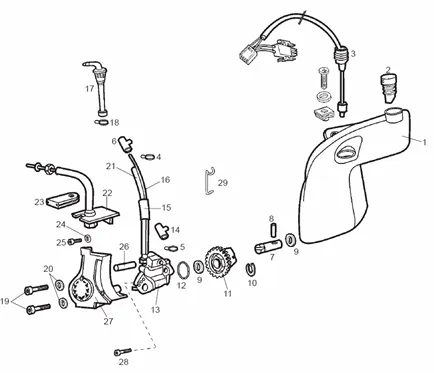

Tables : 22 POMPE HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1038/SENDA_SM_2002_RACER_22.png)
1 |
00H03701081-TANK D, OIL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/1/9/img/63919.jpg)
2 |
CAP TANK D'HUILE OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006/APRILIA 50 SX, RX 2006 >, RS 2006 > 2010-00F03710241 More informationQuantity required : 1 |
||||||
|
3 |
00H03701051-NIVEAU D, HUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/4/1/img/64241.jpg)
4 |
HOSE CLAMP HOSE (7, 8-8, 3) OEM PIAGGIO COMMON A LA RANGE-00H00400501 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/1/8/img/63918.jpg)
5 |
CLAMP HOSE D7 OEM PIAGGIO COMMON A LA RANGE-00F03710131 More informationQuantity required : 1 |
||||||
|
6 |
00H03700211-FLANGE HOSE D'HUILE More informationQuantity required : 1 |
||||||
|
7 |
00H03700101-SHAFT OF PUMP D, HUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/4/0/img/63740.jpg)
8 |
00053030000 - GOUDILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/5/img/69495.jpg)
9 |
WASHER DE SCREW PLATE D'APPUIS CLUTCH OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2000 >/APRILIA 50 SX, RX, RS-847224 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/0/2/img/63602.jpg)
10 |
CIRCLIP FOR CLUTCH CONTROL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00000047110 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/3/7/img/64837.jpg)
11 |
SPROCKET OF PUMP A OIL OEM DERBI 50 SENDA 2005 </GILERA 50 SMT, RCR, GSM, HAK, ZULU 2005 <-00H03800381 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/1/6/img/64816.jpg)
12 |
GASKET OF OIL PUMP OEM DERBI 50 SENDA 2005 <-00H03701041 More informationQuantity required : 1 |
||||||
|
13 |
00H03701021 - POMPE A HUILLE More informationQuantity required : 1 |
||||||
|
14 |
00H03700211-FLANGE HOSE D'HUILE More informationQuantity required : 1 |
||||||
|
15 |
00H03700351 - MANCHON RACCORD TUYEAU DIHU More informationQuantity required : 1 |
||||||
|
16 |
00H03700121 - TUYAU D´HUILE More informationQuantity required : 1 |
||||||
|
17 |
00H03701411 - FILTRE A HUILE More informationQuantity required : 1 |
||||||
|
18 |
00008204500-CLAMP COBRA 21/8 W4 More informationQuantity required : 1 |
||||||
|
19 |
00004154500 - VIS More informationQuantity required : 1 |
||||||
|
20 |
00000033050 - RONDELLE GROWER D5 D127 More informationQuantity required : 1 |
||||||
|
21 |
00H03701111 - TUYAU D,HUILLE More informationQuantity required : 1 |
||||||
|
22 |
00H03700311 - SOUS-ENS SUPPORT CABLE HUIL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/1/0/img/64810.jpg)
23 |
RUBBER OF PUMP A OIL OEM DERBI 50 SENDA 2005 <-00H03700141 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
24 |
WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/6/7/img/63567.jpg)
25 |
SCREW BTR (5X10) MOUNTING SPROCKET SORTIE DE BOX OEM PIAGGIO APRILIA RS 50-125 2006 > 2018, RX-SX 2006 > 2016-00000004510 More informationQuantity required : 1 |
||||||
|
26 |
00H03700341 - ENTRETOISE COUVERCLE DE POM More informationQuantity required : 1 |
||||||
|
27 |
00H03705011 - COUVERCLE DE POMPE A HUILLE More informationQuantity required : 1 |
||||||
|
28 |
VIS T.CREUSE 5M80X15 D912/8.8 |
||||||
|
29 |
00H03700201 - RESSORT More informationQuantity required : 1 |
