Vehicle Exploded View - DERBI SENDA SM 50 SENDA SM 2002 RACER
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

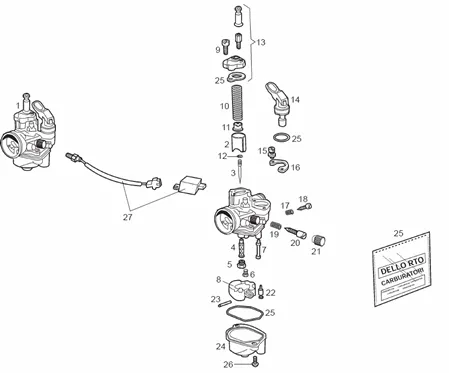

Tables : 19 CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1038/SENDA_SM_2002_RACER_19.png)
1 |
00H03211011 - ENSEMBLE CARBURATEUR More informationQuantity required : 1 |
||||||
|
1 |
00H03221011 - ENSEMBLE CARBURATEUR More informationQuantity required : 1 |
||||||
|
2 |
CM141701-VOLET DE THROTTLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/9/9/img/73099.jpg)
3 |
AIGUILLE DE CARBURETTOR A8 OEM PIAGGIO COMMON A LA RANGE-CM107503 More informationQuantity required : 1 |
||||||
|
4 |
00F03200421 - PULVERISATEUR GA210 More informationQuantity required : 1 |
||||||
|
4 |
00H03203421 - PULVERISATEUR GA210 More informationQuantity required : 1 |
||||||
|
5 |
00H03205031 - GICLEUR PRINCIPAL 73 More informationQuantity required : 1 |
||||||
|
5 |
00H03215031-HAND OPEN FACE 63 More informationQuantity required : 1 |
||||||
|
6 |
00G04103181 - GICLEUR MINIMUM.34 More informationQuantity required : 1 |
||||||
|
6 |
CM102107 - GICLEUR STARTER More informationQuantity required : 1 |
||||||
|
7 |
00H03202481 - GICLEUR DE RALENTI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/2/5/img/66625.jpg)
8 |
FLOTTEUR, POINTEAU ET SHAFT OF CUVE FOR CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-482916 More informationQuantity required : 1 |
||||||
|
9 |
00G03200061-R-BOUL. SER. COUV. CHAMBRE MEL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/2/6/img/66626.jpg)
10 |
SPRING DE BOISSEAU OEM PIAGGIO 50 TYPHOON, ZIP, LIBERTY, NRG, FLY/DERBI SENDA 2000 >/GILERA 50 RCR, SMT, STALKER, RUNNER-482942 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/5/img/66205.jpg)
11 |
BUSH OF GUIDAGE AIGUILLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288873 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/4/img/66204.jpg)
12 |
CIRCLIPS D'AIGUILLE OF CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER-288872 More informationQuantity required : 1 |
||||||
|
13 |
00H03202231-COVER CARBURETTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/4/1/img/73241.jpg)
14 |
STARTER OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-CM146201 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/7/2/img/64072.jpg)
15 |
00G03200541 - R-BOULON SER.START.AUTOM. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/7/3/img/64073.jpg)
16 |
CHOKE PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G03200551 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/7/4/img/64074.jpg)
17 |
SCREW REGLAGE AIR OEM PIAGGIO COMMON A LA RANGE-00G03200721 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/7/5/img/64075.jpg)
18 |
SCREW REGLAGE AIR OEM PIAGGIO COMMON A LA RANGE-00G03200731 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/1/img/65751.jpg)
19 |
SPRING SCREW AIR CARBU OEM PIAGGIO COMMON A LA RANGE-152608 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/3/img/64113.jpg)
20 |
SCREW OF RALENTI OEM PIAGGIO 50 GILERA SMT, RCR, GSM, HAK, ZULU 1998 > 2005/DERBI SENDA 2005 <-00G04100131 More informationQuantity required : 1 |
||||||
|
21 |
00G04100741-R-BUTTON SCREW REGL. VALV. ESS. More informationQuantity required : 1 |
||||||
|
22 |
FLOTTEUR, POINTEAU ET SHAFT OF CUVE FOR CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-482916 More informationQuantity required : 1 |
||||||
|
23 |
FLOTTEUR, POINTEAU ET SHAFT OF CUVE FOR CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-482916 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/2/2/img/69522.jpg)
24 |
847519 - CUVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/7/2/img/66972.jpg)
25 |
POCHETTE/KIT JOINTS DE CARBURETTOR DELORTO OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T (POCHETTE)-498409 More informationQuantity required : 1 |
||||||
|
26 |
00G03201091 - R-BOUL.SERG.VASE ESSENC. More informationQuantity required : 1 |
||||||
|
27 |
00H06000151 - KIT CHAUFFE CARBURATEUR More informationQuantity required : 1 |
