Vehicle Exploded View - DERBI SENDA SM 50 SENDA SM 2002 RACER
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

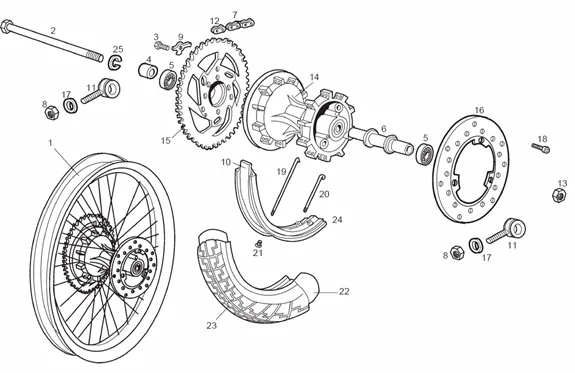

Tables : 10 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1038/SENDA_SM_2002_RACER_10.png)
1 |
00H02412331 - R-CTO.LLANTA TR.C/CA SM 97 More informationQuantity required : 1 |
||||||
|
2 |
SPINDLE/SCREW ARM OCSILLANT OEM DERBI SENDA R/SM 50-00H00304411 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/2/6/img/63626.jpg)
3 |
SCREW TH (8X25) OEM PIAGGIO COMMON A LA RANGE-00002182000 More informationQuantity required : 1 |
||||||
|
4 |
00H01302291-SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/1/0/img/69410.jpg)
5 |
BEARING (12X32X10) DE REAR WHEEL OEM PIAGGIO GILERA 50 SMT, RCR 2006/DERBI SENDA 2000 > 2010/APRILIA 50 SX, RX, RS 2006-847016 More informationQuantity required : 1 |
||||||
|
6 |
00H01302091 - SEPARATEUR ROULEMENTS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/5/6/img/72856.jpg)
7 |
CHAIN 420/130M OEM PIAGGIO 50 APRILIA RS4 2011 >, RX 2006 >, SX 2006 >/DERBI SENDA/GILERA 50 SMT 2006 >, RCR 2006 >-B046219 More informationQuantity required : 1 |
||||||
|
7 |
2B005380-CHAIN 1/2 " X 1/4 "-136 LINKS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
8 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/6/8/img/64468.jpg)
9 |
00H01302052-ARRETOIR DES BOULONS DISC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/0/img/63880.jpg)
10 |
RIM TAPE OEM PIAGGIO 17/18 ¨ (LARGEUR 40)-00D01303401 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/8/6/img/64486.jpg)
11 |
TENDEUR DE CHAIN OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2000 > 2017/APRILIA SX, RX 2006 > 2017-00H01305171 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/3/3/img/64533.jpg)
12 |
CLIP QUICK FITTING CHAIN IRIS 130 MAILLONS OEM PIAGGIO-00H01501212 More informationQuantity required : 1 |
||||||
|
13 |
00000023120 - ECROU IDESSERABLE 12M150 More informationQuantity required : 1 |
||||||
|
14 |
00H01304821 - MOYEU ARRIERE More informationQuantity required : 1 |
||||||
|
15 |
00H01305031 - COURONNE ARR. More informationQuantity required : 1 |
||||||
|
15 |
00H01308031 - COURONNE ARR. More informationQuantity required : 1 |
||||||
|
16 |
00H01302531 - DISQUE DE FREIN ARRIERE More informationQuantity required : 1 |
||||||
|
17 |
BOULON S03105900 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/9/6/img/64696.jpg)
18 |
SCREW REAR BRAKE DISC OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI 50 SENDA 2000 > 2010/APRILIA 50 SX, RX 2006 >-00H02401282 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/6/6/img/64466.jpg)
19 |
SPOKE REAR WHEEL INNER (L199X3) OEM PIAGGIO GILERA 50 SMT 2006 >/DERBI 50 SENDA SM 2000 > 2010-00H01301731 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/8/0/img/64480.jpg)
20 |
SPOKE DE FRONT WHEEL OEM PIAGGIO GILERA 50 SMT 2006/APRILIA 50 SX 2010 >-00H01303691 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/2/7/img/63627.jpg)
21 |
TETES DE SPOKE AV/AR OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX-00002212070 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/0/8/img/64508.jpg)
22 |
INNER TUBE REAR 17 POUCES OEM PIAGGIO 50 GILERA SMT 2006 > 2010/DERBI SENDA 2010 >/APRILIA SX 2006 > 2010-00H01309361 More informationQuantity required : 1 |
||||||
|
23 |
00H01311321 - PNEU ARR. VEE RUBBER 130/70-17 V134 62S More informationQuantity required : 1 |
||||||
|
24 |
00H01306351 - JANTE ARRIERE NUE. More informationQuantity required : 1 |
||||||
|
25 |
00H01301061 - VIS More informationQuantity required : 1 |
