Vehicle Exploded View - DERBI SENDA SM 50 SENDA SM 2002 RACER
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

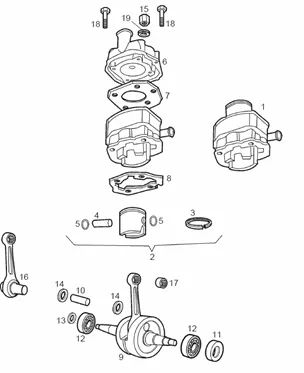

Tables : 13 ARBRE MOTEUR - CYLINDRE - PISTON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1038/SENDA_SM_2002_RACER_13.png)
1 |
00H05007121 - R-CTO.CILIND.-PISTON.SENDA-R More informationQuantity required : 1 |
||||||
|
1 |
00H05007123-CYLINDER ET PISTON COMPLETE More informationQuantity required : 1 |
||||||
|
2 |
00H02542091 - PISTON-COMPLET (A) More informationQuantity required : 1 |
||||||
|
2 |
00H02552091 - PISTON-COMPLET (B) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/1/2/img/69512.jpg)
2 |
PISTON C (FOR CYLINDER ALUMINIUM) OEM DERBI 50 SENDA 2011 <-8472625003 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/0/4/img/69404.jpg)
3 |
PISTON RING (FOR CYLINDER ALUMINIUM) OEM DERBI 50 SENDA 2011 <-847006 More informationQuantity required : 1 |
||||||
|
4 |
00003125120 - AXE PISTON More informationQuantity required : 1 |
||||||
|
4 |
00H02501121 - AXE PISTON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/8/img/69478.jpg)
5 |
847178-CIRCLIPS More informationQuantity required : 1 |
||||||
|
6 |
865157 - CULASSE More informationQuantity required : 1 |
||||||
|
6 |
00H02512013 - CULASSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/0/6/img/64706.jpg)
7 |
CYLINDER HEAD GASKET (FIBRE) OEM PIAGGIO GILERA 50 GSM, HAK, ZULU-00H02501021 More informationQuantity required : 1 |
||||||
|
7 |
00H02505021 - JOINT DE CULASSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/0/2/img/64702.jpg)
8 |
CYLINDER BASE GASKET DE CYLINDER OEM DERBI 50 SENDA 2005 </GILERA 50 SMT, RCR 1998 > 2003-00H02500041 More informationQuantity required : 1 |
||||||
|
9 |
00H02502141 - VILEBREQUIN COMPLET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/1/1/img/63611.jpg)
10 |
SPINDLE ARTICULATION HEAD OF BIELLE OEM PIAGGIO GILERA 50 SMT, RCR, GSM, HAK, ZULU 2005 <-00002025190 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/4/2/img/73542.jpg)
11 |
OIL SEAL (20X35X8) VILLEBREQUIN COTE IGNITION OEM PIAGGIO GILERA 50 SMT, RCR 1998 > 2003, GPR-GU90402037 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/5/img/69475.jpg)
12 |
BEARING (20X47X14) DE VILEBREQUIN OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX, RS 2006 >-8471726 More informationQuantity required : 1 |
||||||
|
14 |
00002225220 - RONDELLE TETE DE BIELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/6/9/img/63669.jpg)
15 |
NUT - FOR HANDLEBAR FASTENING "PIAGGIO GENUINE PART" GILERA GSM, H@K, ZULU, SMT, RCR 1998>2005 -00008202730- More informationQuantity required : 1 |
||||||
|
16 |
00H05001011 - BIELLE AVEC CAGE ET AXE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/2/3/img/69523.jpg)
17 |
CAGE A AIGUILLES DE PISTON 50 A BOX OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX, RS 2006 >, RS4 2011 >-847529 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
18 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838 More informationQuantity required : 1 |
||||||
|
19 |
BOULON S03105900 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/3/5/img/63635.jpg)
20 |
WASHER MOUNTING DE CYLINDER HEAD OEM PIAGGIO GILERA 50 SMT, RCR, GSM 1998 > 2003/DERBI 50 SENDA 2005 >-00003125280 More informationQuantity required : 1 |
