Vehicle Exploded View - DERBI SENDA SM 50 SENDA SM 2002 RACER
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

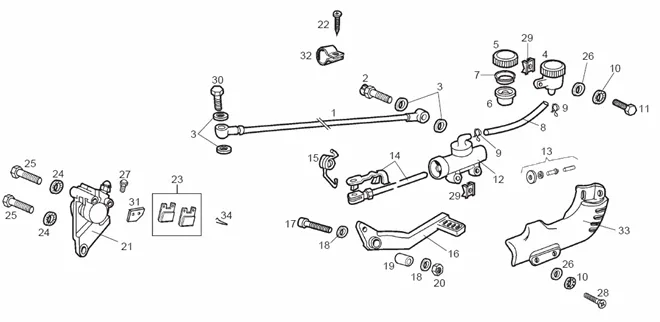

Tables : 11 FREIN ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1038/SENDA_SM_2002_RACER_11.png)
1 |
00D01130081 - TIGE DE FREIN More informationQuantity required : 1 |
||||||
|
2 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/0/3/img/70303.jpg)
3 |
GASKET/WASHER HOSE OF BRAKE OEM PIAGGIO 50 DERBI 50 SENDA 2000 >/APRILIA RX, SX, RS, TUONO/GILERA 50 SMT, RCR-867238 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/3/img/63873.jpg)
4 |
TANK/BOCAL OF BRAKE REAR OEM PIAGGIO GILERA 50 SMT, RCR 2006/DERBI 50 SENDA 2010 >/APRILIA 50 SX, RX 2006, RS 2006 > 2010-00D01100201 More informationQuantity required : 1 |
||||||
|
5 |
00D01100631 - BOUCHON DU RESERVOIR DU LIQ.FREIN More informationQuantity required : 1 |
||||||
|
6 |
00D01100651 - ENTRETOISE RESERVOIR More informationQuantity required : 1 |
||||||
|
7 |
00D01100641 - JOINT BOUCHON DU RESERV.LIQ.FR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/4/img/63874.jpg)
8 |
00D01100211 - FLEXIBLE DE FREIN ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/0/9/img/64809.jpg)
9 |
CLAMP HOSE (8X10) BOCAL OF BRAKE OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2010 </APRILIA SX, RX, RS-00H03700131 More informationQuantity required : 1 |
||||||
|
10 |
|
||||||
|
11 |
|
||||||
|
12 |
00D01100181 - ENSEMBLE COMMANDE FREIN ARRIER More informationQuantity required : 1 |
||||||
|
13 |
00D01100461 - R-CTO.KIT BOMBA FR.TR.D.11 More informationQuantity required : 1 |
||||||
|
14 |
00H01101611 - TIGE DE FREIN ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/8/3/5/1/img/188351.jpg)
15 |
SPRING DE PEDAL OF BRAKE OEM DERBI 50 SENDA RACER 2002 > 2003-00D01100071 More informationQuantity required : 1 |
||||||
|
16 |
00D01130011 - PEDALE DE FREIN AR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/2/0/img/63620.jpg)
17 |
00002084011 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/6/img/63596.jpg)
18 |
WASHER PLATE (8. 4X15. 8X1. 5) OEM PIAGGIO COMMON A LA RANGE-00000031080 More informationQuantity required : 1 |
||||||
|
19 |
00D01110171 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/1/5/img/63715.jpg)
20 |
NUT AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-00023108000 More informationQuantity required : 1 |
||||||
|
21 |
00H01102581 - ETRIER FREIN ARR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/8/7/img/63687.jpg)
22 |
SCREW PARKER (4, 8X13) CRUCIFORME OEM COMMON A LA RANGE-00011141300 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/2/5/img/64125.jpg)
23 |
BRAKE PAD OEM DERBI 50 SENDA 2000 > 2010/GILERA SMT 2006/APRILIA 50 RS, RX, SX 2006 > 2010 (AJP)-00G04700141 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/3/1/img/63731.jpg)
24 |
WASHER CANNELE D8 OEM PIAGGIO COMMON A LA RANGE-00034000802 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/6/4/img/63564.jpg)
25 |
00000002840 - TOR.C/EXAG. 8M125X40.8.8/D-931 ZNB. More informationQuantity required : 1 |
||||||
|
26 |
BOULON S03105900 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/0/4/5/img/70045.jpg)
27 |
SCREW OF BLEEDING BRAKE CALIPER OEM DERBI 50 SENDA 2010 </GILERA 50 SMT, RCR 2006 </APRILIA 50-125 RS 2013 <-864123 More informationQuantity required : 1 |
||||||
|
28 |
00008062000-BOLT BOMBEE ALLEN 6M100X20 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
29 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/9/5/8/img/69958.jpg)
30 |
862494 - R-TORNILLO RACORD HIDRAULICO More informationQuantity required : 1 |
||||||
|
31 |
00G04700131 - CALE DE PLAQU.DE FREIN ANTI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/0/5/4/img/70054.jpg)
32 |
GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE 50 A BOX-864454 More informationQuantity required : 1 |
||||||
|
33 |
00H01100731 - PROTECTEUR ENS.COMMANDE FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/6/7/img/64467.jpg)
34 |
SPRING BRAKE PAD OEM PIAGGIO 50 GILERA SMT, RCR 2006/DERBI SENDA 2000 > 2010/APRILIA SX, RX 2006 > 2010-00H01301831 More informationQuantity required : 1 |
