Vehicle Exploded View - APRILIA SCARABEO LIGHT 125 Scarabeo 125 IE Light 2009-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

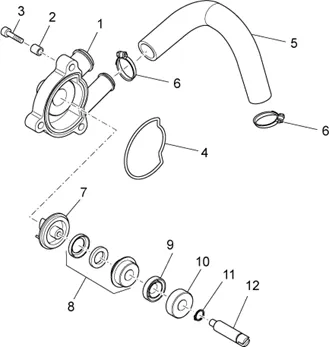

Moteur : 29.55 POMPE À EAU
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/608/Scarabeo_125_IE_Light_2009-2010_29.55.PNG)
1 |
AP3LZA000564-SPRING More informationQuantity required : 1 |
||||||
|
2 |
AP3FCN000249-BUSH More informationQuantity required : 3 |
||||||
|
3 |
AP4ADN000266-SCREW M5X18 UNI 5931 CL. 8, 8 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/9/5/0/img/44950.jpg)
4 |
O-RING COVER WATER PUMP OEM PIAGGIO APRILIA SCARABEO 125-200 2007 > 2012-AP4EAN000252 More informationQuantity required : 1 |
||||||
|
5 |
JC17811X05300-HOSE PUMP-CYLINDER More informationQuantity required : 1 |
||||||
|
6 |
AP4FDN000034-COLLIER0 More informationQuantity required : 2 |
||||||
|
7 |
AP3LDA000324 - ROTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/8/3/2/img/44832.jpg)
8 |
AP3LAA000173-ETANCHEITE MECANIQUE PUMP * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/9/5/1/img/44951.jpg)
9 |
SEAL RING GASKET- FOR WATER PUMP "PIAGGIO GENUINE PART" APRILIA SCARABEO 125 2007>2012 (10X22X7) -AP4EBN000162 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/9/6/8/img/44968.jpg)
10 |
AP4GAN000156 - ROULEMENT 6000 C3 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/0/img/63810.jpg)
11 |
CLIPS/CIRCLIPS (9. 3) DE PULLEY ENTRAINEE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-006410 More informationQuantity required : 1 |
||||||
|
12 |
AP3LCA000323 - AXE POMPE A HULLIE More informationQuantity required : 1 |
