Vehicle Exploded View - APRILIA SCARABEO LIGHT 125 Scarabeo 125 IE Light 2009-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

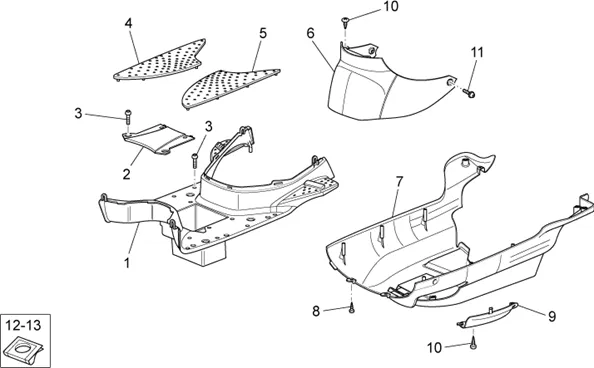

Chassis : 28.13 CARROSSERIE CENTRALE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/608/Scarabeo_125_IE_Light_2009-2010_28.13.PNG)
1 |
JC47331X92000-REST-FEET More informationQuantity required : 1 |
|||||||||
|
2 |
JC47341X92000 - CACHE BATTERIE More informationQuantity required : 1 |
|||||||||
|
3 |
JC02142X06163-SCREW TBEI More informationQuantity required : 6 |
|||||||||
|
4 |
JC47131X92000-MAT D BLACK More informationQuantity required : 1 |
|||||||||
|
5 |
JC47231X92000 - TAPIS G More informationQuantity required : 1 |
|||||||||
|
6 |
JC473519200006B - BOUGIE More informationQuantity required : 1 |
|||||||||
|
6 |
JC473519200006Z - COUVERCLE More informationQuantity required : 1 |
|||||||||
|
6 |
JC473519200007B-COVER SPARK PLUG, BLACK More informationQuantity required : 1 |
|||||||||
|
6 |
JC473519200007C - COUVERCLE BOUGIE, SILVER More informationQuantity required : 1 |
|||||||||
|
6 |
JC473519200007D-COVER SPARK PLUG, WHITE More informationQuantity required : 1 |
|||||||||
|
6 |
JC473519200007L - COUVERCLE D'ALLUMAGE More informationQuantity required : 1 |
|||||||||
|
6 |
JC473519200007M - COUVERCLE D'ALLUMAGE More informationQuantity required : 1 |
|||||||||
|
6 |
JC47351X92000-SPARK PLUG More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/2/4/4/img/63244.JPG)
7 |
SPOILER BAS DE CAISSE OEM PIAGGIO 125 SCARABEO LIGHT 2007 >-JC47361X92000 More informationQuantity required : 1 |
|||||||||
|
8 |
JCE41104216JN00-SCREW More informationQuantity required : 1 |
|||||||||
|
9 |
JC47461X92000-COVER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
10 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
11 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 2 |
|||||||||
|
11 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
12 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/5/7/img/72157.jpg)
13 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-AP8202449 More informationQuantity required : 2 |
|||||||||
