Vehicle Exploded View - APRILIA SCARABEO LIGHT 125 Scarabeo 125 IE Light 2009-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

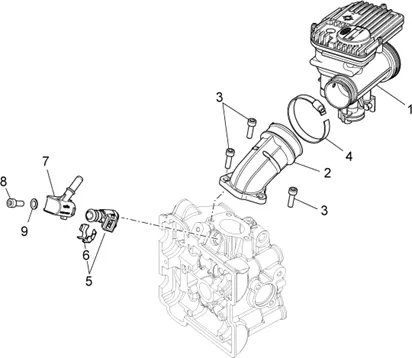

Moteur : 29.29 GROUP INJECTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/608/Scarabeo_125_IE_Light_2009-2010_29.29.PNG)
1 |
CM081721 - CORPS A PAPILLON More informationQuantity required : 1 |
||||||
|
1 |
CM081722 - CORPS A PAPILLON More informationQuantity required : 1 |
||||||
|
2 |
JC13101X05300 - RACCORD D'ADMISSION More informationQuantity required : 1 |
||||||
|
3 |
AP4ADN000014-SCREW More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/5/5/6/img/111556.jpg)
4 |
CLAMP SERRAGE TUBE 40-60 OEM PIAGGIO COMMON A LA RANGE-614188 More informationQuantity required : 1 |
||||||
|
5 |
890225-INJECTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/1/0/3/img/39103.jpg)
6 |
CLIPS DE RETENU INJECTEUR OEM PIAGGIO COMMON A LA RANGE-849898 More informationQuantity required : 1 |
||||||
|
7 |
JC33921X05300-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/3/img/68493.jpg)
8 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-709099 More informationQuantity required : 1 |
||||||
|
9 |
013934 - RONDELLE PLATE More informationQuantity required : 1 |
