Vehicle Exploded View - APRILIA SCARABEO LIGHT 125 Scarabeo 125 IE Light 2009-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

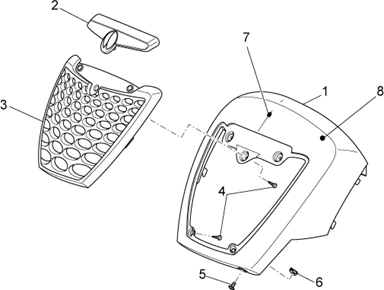

Chassis : 28.09 CARROSSERIE AV. - FRONTAL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/608/Scarabeo_125_IE_Light_2009-2010_28.09.PNG)
1 |
JC481119200006B-COVER More informationQuantity required : 1 |
|||||||||
|
1 |
JC481119200006Z - COFFRE AV., BLEU More informationQuantity required : 1 |
|||||||||
|
1 |
JC481119200007B - COFFRE AV., NOIR More informationQuantity required : 1 |
|||||||||
|
1 |
JC481119200007C - COFFRE AV., ARGENT More informationQuantity required : 1 |
|||||||||
|
1 |
JC481119200007D - COFFRE AV.P.BLANC More informationQuantity required : 1 |
|||||||||
|
1 |
JC481119200007L - COFFRE AV., VERT More informationQuantity required : 1 |
|||||||||
|
1 |
JC481119200007M - COFFRE AV JAUNE More informationQuantity required : 1 |
|||||||||
|
1 |
JC48111X92000-UNDERSEAT COMPARTMENT More informationQuantity required : 1 |
|||||||||
|
2 |
JC48131X92000-GRAPHIC FRONT More informationQuantity required : 1 |
|||||||||
|
3 |
JC481219400006B-GRILLE, BLUE More informationQuantity required : 1 |
|||||||||
|
3 |
JC481219400006Z - GRILLE, BLEU More informationQuantity required : 1 |
|||||||||
|
3 |
JC481219400007B-GRILLE, BLACK More informationQuantity required : 1 |
|||||||||
|
3 |
JC481219400007C - GRILLE, SILVER More informationQuantity required : 1 |
|||||||||
|
3 |
JC481219400007D-GRILLE, WHITE More informationQuantity required : 1 |
|||||||||
|
3 |
JC481219400007L - GRILLE More informationQuantity required : 1 |
|||||||||
|
3 |
JC481219400007M - GRILLE More informationQuantity required : 1 |
|||||||||
|
3 |
JC48121X94000-GRILLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
4 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 5 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
5 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 2 |
|||||||||
|
5 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
6 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 4 |
|||||||||
|
7 |
JC68643X92000-PLATE More informationQuantity required : 1 |
|||||||||
|
8 |
JC68611X94003 - DECALCO More informationQuantity required : 1 |
|||||||||
