Vehicle Exploded View - APRILIA SCARABEO LIGHT 125 Scarabeo 125 IE Light 2009-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

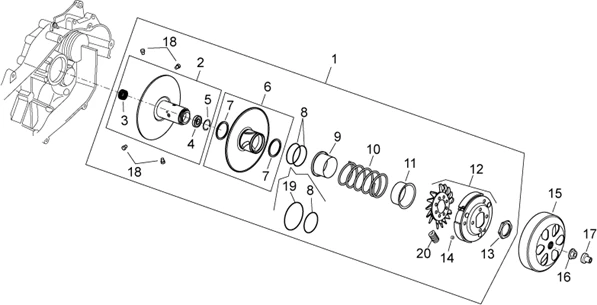

Moteur : 29.48 EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/608/Scarabeo_125_IE_Light_2009-2010_29.48.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/2/7/5/2/img/172752.jpg)
1 |
PULLEY RECEPTRICE OEM PIAGGIO 250-300 MP3, BEVERLY, X7, VESPA GTS, 250 X8, X9, X-EVO, 300 YOURBAN/GILERA 250 NEXUS/APRILIA 250-300 ATLANTIC, SCARABEO, SPORT-CITY-CM316301 More informationQuantity required : 1 |
|||||||||
|
1 |
PULLEY RECEPTRICE OEM PIAGGIO 250-300 MP3, BEVERLY, X7, VESPA GTS, 250 X8, X9, X-EVO, 300 YOURBAN/GILERA 250 NEXUS/APRILIA 250-300 ATLANTIC, SCARABEO, SPORT-CITY-CM316301 More informationQuantity required : 1 |
|||||||||
|
1 |
PULLEY RECEPTRICE OEM PIAGGIO 250-300 MP3, BEVERLY, X7, VESPA GTS, 250 X8, X9, X-EVO, 300 YOURBAN/GILERA 250 NEXUS/APRILIA 250-300 ATLANTIC, SCARABEO, SPORT-CITY-CM316301 More informationQuantity required : 1 |
|||||||||
1 |
CM162406 - POULIE ENTRAINEE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/2/7/img/68927.jpg)
2 |
HALF PULLEY RECEPTRICE (PARTIE FIXE) OEM PIAGGIO 125 MP3, X8, X9, X10, VESPA GTS, VESPA LX, YOURBAN, TYPHOON/GILERA 125 NEXUS, RUNNER/APRILIA 125 ATLANTIC, SCARABEO, SPORT-CITY, SR-MAX-830580 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/0/2/9/img/156029.jpg)
2 |
HALF PULLEY FIXE RECEPTRICE OEM PIAGGIO 250-300 MP3, BEVERLY, YOURBAN, X7, VESPA GTS, 250 X9, X8, X-EVO/GILERA 250-300 NEXUS/APRILIA 125-250-300 ATLANTIC, SCARABEO-1A013202 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/2/3/img/68523.jpg)
3 |
CAGE A AIGUILLES (20X29X18) DE TORQUE DRIVER OF TORQUE MAXI SCOOTER OEM PIAGGIO COMMON A LA RANGE 125-250-300-82518R More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/7/7/img/68677.jpg)
4 |
BEARING (17X30X7) DE PULLEY RECEPTRICE OEM PIAGGIO COMMON A LA RANGE MAXISCOOTEUR 125-250-300-82753R More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/2/9/img/66629.jpg)
5 |
CLIPS/CICLIPS DE PULLEY ENTRAINEE OEM PIAGGIO 125-250-300-483226 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/0/3/2/img/156032.jpg)
6 |
PULLEY SECONDAIRE MOBILE OEM PIAGGIO 300 COMMON A LA RANGE-1A013204 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/0/4/img/70704.jpg)
6 |
FLASQUE MOBILE DE PULLEY RECEPTRICE OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 (LIVRE WITHOUT O-RING)-879002 More informationQuantity required : 1 |
|||||||||
|
6 |
PULLEY SECONDAIRE MOBILE OEM PIAGGIO 300 COMMON A LA RANGE-1A013204 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/9/2/img/66392.jpg)
7 |
OIL SEAL (41X48X4) OEM PIAGGIO COMMON A LA RANGE-431089 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/8/2/img/66382.jpg)
8 |
GASKET OF PULLEY RECEPTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-430585 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/9/4/img/66394.jpg)
9 |
GUIDE INNER DE SPRING PULLEY ENTRAINEE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-4310935 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/7/9/img/69079.jpg)
9 |
BUSH PULLEY ENTRAINEE OEM PIAGGIO 300 COMMON A LA RANGE-833674 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/7/8/img/69078.jpg)
10 |
SPRING PULLEY RECEPTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 250-300-833673 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/4/2/img/70442.jpg)
10 |
SPRING CORRECTEUR DE COUPLE OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125-872877 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/6/5/img/66765.jpg)
11 |
GUIDE EXTERIEUR DE SPRING PULLEY ENTRAINEE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-487936 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/8/6/6/0/img/168660.jpg)
12 |
CLUTCH MAXI SCOOTER OEM PIAGGIO 250-300 MP3, BEVERLY, CARNABY, VESPA GTS, X7, 250 X8, X9, X-EVO/GILERA 250 NEXUS/APRILIA 250-300 SCARABEO, SPORT-CITY, ATLANTIC-CM3117015 More informationQuantity required : 1 |
|||||||||
|
12 |
CLUTCH MAXI SCOOTER OEM PIAGGIO 250-300 MP3, BEVERLY, CARNABY, VESPA GTS, X7, 250 X8, X9, X-EVO/GILERA 250 NEXUS/APRILIA 250-300 SCARABEO, SPORT-CITY, ATLANTIC-CM3117015 More informationQuantity required : 1 |
|||||||||
|
12 |
CM161205 - GR.EMBRAYAGE More informationQuantity required : 1 |
|||||||||
|
12 |
CLUTCH MAXI SCOOTER OEM PIAGGIO 250-300 MP3, BEVERLY, CARNABY, VESPA GTS, X7, 250 X8, X9, X-EVO/GILERA 250 NEXUS/APRILIA 250-300 SCARABEO, SPORT-CITY, ATLANTIC-CM3117015 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/3/4/img/66434.jpg)
13 |
NUT DE PULLEY RECEPTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-433232 More informationQuantity required : 1 |
|||||||||
|
14 |
844621 - PASSE CABLE More informationQuantity required : 3 |
|||||||||
|
15 |
485731-TAMBOUR D'EMBR. More informationQuantity required : 1 |
|||||||||
|
16 |
AP3BDN000273 - ECROU M12X1.0 More informationQuantity required : 1 |
|||||||||
|
17 |
AP3MAA000753-HUB More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/2/img/68772.jpg)
18 |
SHAFT OF GUIDAGE DE PULLEY RECEPTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-828717 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/0/img/69100.jpg)
19 |
O-RING (50. 52X1. 78) PULLEY ENTRAINEE OEM PIAGGIO 250-300 MP3, GTS, X7, X8, X9-834044 More informationQuantity required : 1 |
|||||||||
|
20 |
434673 - More informationQuantity required : 3 |
|||||||||
|
20 |
840197-SPRING More informationQuantity required : 3 |
|||||||||
