Vehicle Exploded View - GILERA SC 125 2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

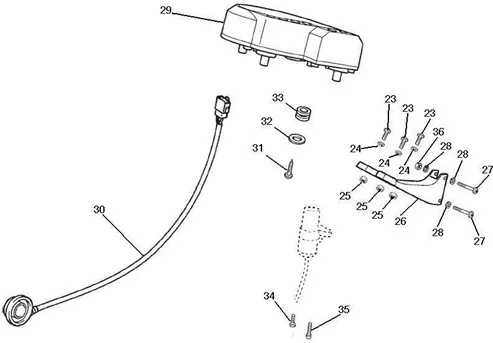

Manillar dirección : 03.02 GROUPE INSTRUMENTS - CRUSCOTTO
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/167/SC_125_2006_03.02.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/3/9/img/65039.jpg)
23 |
SCREW BTR (6X18) MOUNTING FAIRING OEM PIAGGIO GILERA 50 GPR-00H06301861 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/6/img/63786.jpg)
24 |
WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
25 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060 More informationQuantity required : 2 |
||||||
26 |
00H04903181-ENS. BRACKET PANEL DE EDGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/6/8/img/63668.jpg)
27 |
SCREW BTR HEAD BOMBEE (6X45) OEM PIAGGIO COMMON A LA RANGE-00008064500 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/6/img/63726.jpg)
28 |
WASHER PLATE (6X12X1. 7) OEM PIAGGIO COMMON A LA RANGE-00031106000 More informationQuantity required : 1 |
||||||
|
29 |
861273 - BOITIER TABLEAU BORD More informationQuantity required : 1 |
||||||
|
29 |
863024 - BOITIER TABLEAU BORD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/8/7/img/70887.jpg)
30 |
SENSOR OF SPEED/CABLE/CONTROL DE INSTRUMENT CLUSTER OEM DERBI 50 DRD, GPR 2005 > 2011/APRILIA 50 RX 2006 > 2017, SX 2006 > 2017, RS 2006 > 2019-898626 More informationQuantity required : 1 |
||||||
|
31 |
00011941300-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
32 |
WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181 More informationQuantity required : 1 |
||||||
|
33 |
00H01602941-RUBBER GUIDE-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/3/2/img/65032.jpg)
34 |
SCREW A ARRACHEMENT/AUTO-CASSANTE BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-00H06300791 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/9/img/71829.jpg)
35 |
SCREW BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8150169 More informationQuantity required : 1 |
||||||
|
36 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060 More informationQuantity required : 1 |
