Vehicle Exploded View - GILERA SC 125 2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

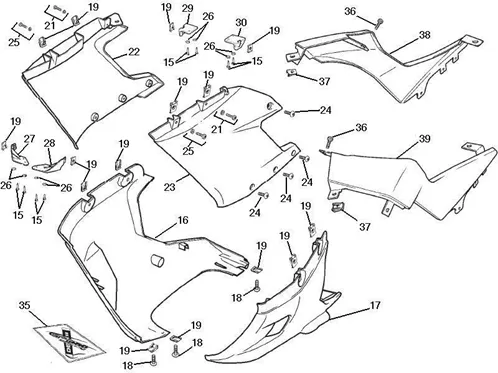

Chasis - partes plástico - carrocerias : 02.32 COUVERTURES LATERALES - SPOILER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/167/SC_125_2006_02.32.PNG)
15 |
00000011416-SCREW TARAUD T. RONDE CROIX 4, 8X1 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/9/7/4/img/69974.jpg)
16 |
RIGHT LOWER BODY SIDE -"PIAGGIO GENUINE PART" GILERA 125 SC BLACK -86265200WN0 More informationQuantity required : 1 |
||||||
|
17 |
Carène latérale d. |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/3/3/img/65033.jpg)
18 |
SCREW BTR (6X14) MOUNTING FAIRING OEM PIAGGIO GILERA 50 GPR-00H06300861 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
19 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/8/img/63678.jpg)
21 |
SCREW PARKER (3, 6X25) CRUCIFORME DE HEADLAMP FRONT OEM PIAGGIO GILERA 50 SMT, RCR 2011 >-00011032501 More informationQuantity required : 1 |
||||||
|
22 |
86265000WR25 - FLANC DR More informationQuantity required : 1 |
||||||
|
23 |
86265100WR25 - FLANC GAU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/3/7/img/64537.jpg)
24 |
SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-00H01501701 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/5/1/img/64151.jpg)
25 |
SCREW CRUCIFORME (6X20) OEM PIAGGIO COMMON A LA RANGE-00G06800021 More informationQuantity required : 1 |
||||||
|
26 |
00031105000-WASHER PLATE M5 DIN125 More informationQuantity required : 1 |
||||||
|
27 |
00H04613841-COVER FRONTAL DR. More informationQuantity required : 1 |
||||||
|
28 |
00H01504261-COVER FRONTAL GA. More informationQuantity required : 1 |
||||||
|
29 |
00H02203461 - COUVERCLE POST. DR. More informationQuantity required : 1 |
||||||
|
30 |
00H05904521-COVER POST. GA. More informationQuantity required : 1 |
||||||
|
35 |
86265800WR2 - KIT DECALQUES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/2/3/img/63923.jpg)
36 |
SCREW CRUCIFORME (6X16) MAINTIEN PANEL DE EDGE OU COQUE REAR OEM PIAGGIO APRILIA 50 RS 2006 > 2010-00F05900041 More informationQuantity required : 1 |
||||||
|
37 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
|
38 |
00H04411771 - COUVERCLE RESERVOIR LATERAL DR More informationQuantity required : 1 |
||||||
|
39 |
00H04411781-COVER TANK LATERAL G More informationQuantity required : 1 |
