Vehicle Exploded View - GILERA SC 125 2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

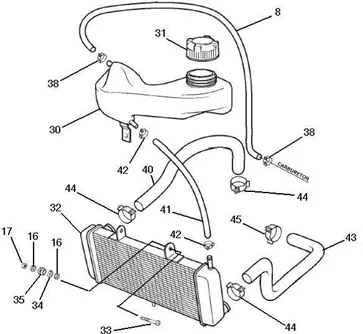

Chasis - partes plástico - carrocerias : 02.55 INSTALATION DE REFOIDISSEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/167/SC_125_2006_02.55.PNG)
8 |
00H03800971-HOSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/6/img/63786.jpg)
16 |
WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
17 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060 More informationQuantity required : 1 |
||||||
|
30 |
VASE EXPANSION OEM PIAGGIO APRILIA 50 RS 2006 > 2010/GILERA 125 SC-00H03803501 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/5/8/img/64858.jpg)
31 |
CAP DE TANK LIQUIDE COOLING OEM DERBI 50 SENDA 2004 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 RS, SX, RX 2006 >-00H03802472 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/7/5/img/64875.jpg)
32 |
COOLING RADIATOR "PIAGGIO GENUINE PART" GILERA 125 SC -00H03811011 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/8/img/71828.jpg)
33 |
SCREW BTR (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8150165 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/3/img/63883.jpg)
34 |
WASHER SPECIALE OEM PIAGGIO COMMON A LA RANGE-00D01500552 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/3/img/63673.jpg)
35 |
RUBBER MOUNT DE RADIATOR OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA RS 2006 > 2011, SX, RX 2006 >-00008915020 More informationQuantity required : 1 |
||||||
|
38 |
00H03804091-CLAMP More informationQuantity required : 1 |
||||||
|
40 |
00H03809021 - TUYAU More informationQuantity required : 1 |
||||||
|
41 |
00H03805491-HOSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/0/8/img/64108.jpg)
42 |
CLAMP HOSE OEM PIAGGIO COMMON A LA RANGE More informationQuantity required : 1 |
||||||
|
43 |
00H03804041 - TUYAU More informationQuantity required : 1 |
||||||
|
44 |
00008204500-CLAMP COBRA 21/8 W4 More informationQuantity required : 1 |
||||||
|
45 |
00G03801091-CLAMP More informationQuantity required : 1 |
