Vehicle Exploded View - GILERA SC 125 2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

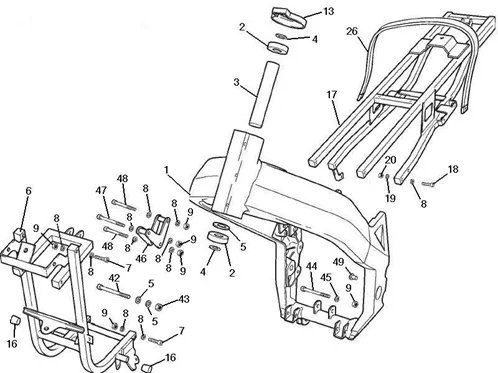

Chasis - partes plástico - carrocerias : 02.01 CHÂSSIS/COQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/167/SC_125_2006_02.01.PNG)
1 |
00H01981601 - SOUS ENSEMBLE CADRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/0/6/img/63606.jpg)
2 |
BEARING (25X52X15) DE STEERING OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2000 > 2015/APRILIA SX, RX 2006 > 2011-00000056205 More informationQuantity required : 1 |
||||||
|
3 |
00H06300401-TUBE SEPARATION BEARING More informationQuantity required : 1 |
||||||
|
4 |
RONDELLE FIXE DIRECTION 35X25X |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/6/img/63786.jpg)
5 |
WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001 More informationQuantity required : 1 |
||||||
|
6 |
CADRE ANT |
||||||
|
7 |
00002084514-TORN. C/ALL. 8M125X45 DIN912 12. 9 DAC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/4/6/img/63946.jpg)
8 |
WASHER PLATE (8. 6X20X2. 5) OEM PIAGGIO COMMON A LA RANGE-00G00803101 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/0/img/63720.jpg)
9 |
NUT FLANGE (8X1. 25) OEM PIAGGIO COMMON A LA RANGE-00026008001 More informationQuantity required : 1 |
||||||
|
13 |
00H00203761 - BOUCHON More informationQuantity required : 1 |
||||||
|
16 |
00H01504301-CAP More informationQuantity required : 1 |
||||||
|
17 |
00H00108341A-CADRE REAR More informationQuantity required : 1 |
||||||
|
18 |
00004184001 - VIS More informationQuantity required : 1 |
||||||
|
19 |
00000033080-WASHER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/1/5/img/63715.jpg)
20 |
NUT AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-00023108000 More informationQuantity required : 1 |
||||||
|
26 |
00H04901731-GRIP More informationQuantity required : 1 |
||||||
|
42 |
00011101302 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
43 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 1 |
||||||
|
44 |
00002088014 - TORN.C/ALL.8M125X85 DIN912 12.9 DAC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/7/img/63787.jpg)
45 |
WASHER PLATE (D8) MOUNTING ENGINE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX, RS-00402080001 More informationQuantity required : 1 |
||||||
|
46 |
00H04400651 - APPUI More informationQuantity required : 1 |
||||||
|
47 |
00002086531 - TORN.C/ALL.8M125X65 DIN912 12.9 DAC More informationQuantity required : 1 |
||||||
|
48 |
00002085531-TORN. C/ALL. 8M125X55 DIN912 12. 9 DAC More informationQuantity required : 1 |
||||||
|
49 |
BOUCHON |
