Vehicle Exploded View - GILERA SC 125 2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

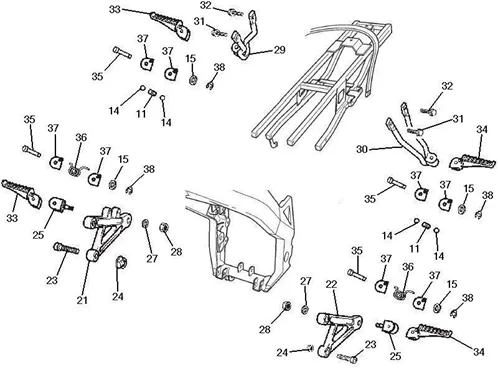

Chasis - partes plástico - carrocerias : 02.31 PROTECTION CENTRALE - REPOSE-PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/167/SC_125_2006_02.31.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/9/5/1/img/64951.jpg)
11 |
SPRING FOOTREST REAR OEM DERBI 50-125 GPR 2008 < 00H04902291 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/0/8/img/63608.jpg)
14 |
BILLE DIAMETRE 6 OEM PIAGGIO COMMON A LA RANGE-00000061061 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
15 |
WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171 More informationQuantity required : 1 |
||||||
21 |
PLATINE FOOTREST PILOTE RIGHT OEM PIAGGIO APRILIA 50 RS 2006 > 2010-00H01504121 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/3/1/img/64531.jpg)
22 |
FOOTREST SUPPORT- FRONT LEFT "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00H01501131 More informationQuantity required : 1 |
||||||
|
23 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/1/5/img/63715.jpg)
24 |
NUT AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-00023108000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/7/1/img/64671.jpg)
25 |
00H02202311 - APPUI REPOSE PIED More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/6/img/63786.jpg)
27 |
WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001 More informationQuantity required : 1 |
||||||
|
28 |
NUT AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-00023108000 More informationQuantity required : 1 |
||||||
|
29 |
00H00105702A-FOOTREST RIGHT More informationQuantity required : 1 |
||||||
|
30 |
00H00105672A-FOOTREST LEFT More informationQuantity required : 1 |
||||||
|
31 |
00006082000 - VIS More informationQuantity required : 1 |
||||||
|
32 |
00006083000 - VIS A TETE HEXAGON.AVEC BRIDE More informationQuantity required : 1 |
||||||
|
33 |
FOOTREST RIGHT OEM PIAGGIO APRILIA 50 RS 2006 > 2010-00H01507091 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/5/6/img/64556.jpg)
34 |
FOOTREST LEFT OEM PIAGGIO APRILIA 50 RS 2006 > 2010-00H01507451 More informationQuantity required : 1 |
||||||
|
35 |
00H04902311-SPINDLE ARTICULATION TRIER More informationQuantity required : 1 |
||||||
|
36 |
00H04901291 - RESSORT FIXATION FTRIER GPR-50 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/9/5/5/img/64955.jpg)
37 |
00H04903401-BRACKET MOUNTING TRIER PASSAG More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/3/6/img/63736.jpg)
38 |
CLIPS SHAFT OF HATCH A FUEL OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2000 >/APRILIA 50 SX, RX-00047030400 More informationQuantity required : 1 |
