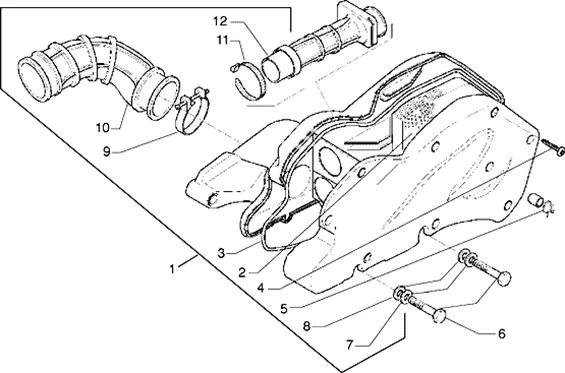

Vehicle Exploded View - GILERA RUNNER 180 VXR 1998-2005 GILERA

Moteur : T20 FILTRE À AIR
Filtre à air
Search
filtre a air

1
P2R reference P2R reference
Maker reference Maker reference 828643

filtre a air

ELEMENT/MOUSSE DE AIR FILTER MAXI SCOOTER OEM PIAGGIO 125 X9 1998 > 2005/GILERA 125 DNA 1998 > 2005-8279360P

2
P2R reference P2R reference 168718
Maker reference Maker reference 827936

ELEMENT/MOUSSE DE AIR FILTER MAXI SCOOTER OEM PIAGGIO 125 X9 1998 > 2005/GILERA 125 DNA 1998 > 2005-8279360P

More information

Quantity required : 1

ELEMENT/MOUSSE DE AIR FILTER MAXI SCOOTER OEM PIAGGIO 125 X9 1998 > 2005/GILERA 125 DNA 1998 > 2005-8279360P

2
P2R reference P2R reference 168718
Maker reference Maker reference 8279360P

ELEMENT/MOUSSE DE AIR FILTER MAXI SCOOTER OEM PIAGGIO 125 X9 1998 > 2005/GILERA 125 DNA 1998 > 2005-8279360P

More information

Quantity required : 1

GASKET CAPOT AIR FILTER OEM PIAGGIO 125 X9 2005 <-827938

3
P2R reference P2R reference 92775
Maker reference Maker reference 827938

GASKET CAPOT AIR FILTER OEM PIAGGIO 125 X9 2005 <-827938

More information

Quantity required : 1

SCREW AUTOTARAUDEUSE (3X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-258146

4
P2R reference P2R reference 66025
Maker reference Maker reference 258146

SCREW AUTOTARAUDEUSE (3X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-258146

More information

Quantity required : 9

CLAMP HOSE (D13) COOLING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-CM002910

5
P2R reference P2R reference 72895
Maker reference Maker reference CM002910

CLAMP HOSE (D13) COOLING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-CM002910

More information

Quantity required : 1

SCREW CRUCIFORME (6X50) OEM PIAGGIO COMMON A TOUTE LA RANGE-018640

6
P2R reference P2R reference 65448
Maker reference Maker reference 0186405

SCREW CRUCIFORME (6X50) OEM PIAGGIO COMMON A TOUTE LA RANGE-018640

More information

Quantity required : 3

WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533

7
P2R reference P2R reference 65345
Maker reference Maker reference 0125335

WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533

More information

Quantity required : 3

WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056

8
P2R reference P2R reference 63777
Maker reference Maker reference 0030565

WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056

More information

Quantity required : 3

CLAMP 58-62. 5 OEM PIAGGIO COMMON A LA RANGE-260918

9
P2R reference P2R reference 66046
Maker reference Maker reference 260918

CLAMP 58-62. 5 OEM PIAGGIO COMMON A LA RANGE-260918

More information

Quantity required : 1

827939 - MANCHON

10
P2R reference P2R reference 68720
Maker reference Maker reference 827939

827939-SLEEVE

More information

Quantity required : 1

828769 - COLLIER

11
P2R reference P2R reference 92810
Maker reference Maker reference 828769

828769 - COLLIER

More information

Quantity required : 1

AIR FILTER INTAKE HOSE "PIAGGIO GENUINE PART" 125 X9/GILERA 1998>2003 125 RUNNER 1998>2003 -827934

12
P2R reference P2R reference 92774
Maker reference Maker reference 827934

AIR FILTER INTAKE HOSE "PIAGGIO GENUINE PART" 125 X9/GILERA 1998>2003 125 RUNNER 1998>2003 -827934

More information

Quantity required : 2
