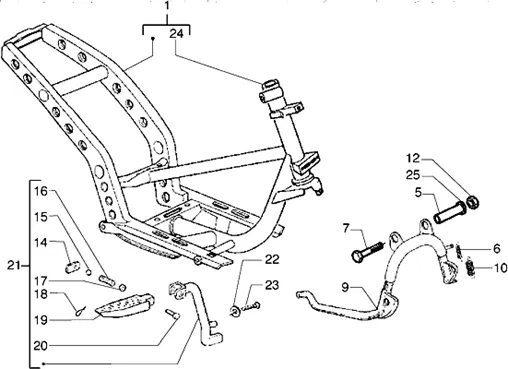

Vehicle Exploded View - GILERA RUNNER 180 VXR 1998-2005 GILERA

Châssis : T22 CHÂSSIS-BEQUILLE
Châssis-Bequille
Search
5776715 - CHASSIS

1
P2R reference P2R reference 81343
Maker reference Maker reference 5776715

5776715 - CHASSIS

More information

Quantity required : 1

SPACER DE STAND OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-582298

5
P2R reference P2R reference 67251
Maker reference Maker reference 582298

SPACER DE STAND OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-582298

More information

Quantity required : 1

SPRING DE STAND OEM PIAGGIO COMMON A TOUTE LA RANGE-581248

6
P2R reference P2R reference 67208
Maker reference Maker reference 581248

SPRING DE STAND OEM PIAGGIO COMMON A TOUTE LA RANGE-581248

More information

Quantity required : 1

SCREW TH (10X130) DE CENTRE STAND OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-030115

7
P2R reference P2R reference 65625
Maker reference Maker reference 0301155

SCREW TH (10X130) DE CENTRE STAND OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-030115

More information

Quantity required : 1

582941 - BEQUILLE

9
P2R reference P2R reference 81847
Maker reference Maker reference 582941

582941 - BEQUILLE

More information

Quantity required : 1

SPRING DE CENTRE STAND OEM PIAGGIO COMMON A TOUTE LA RANGE-581249

10
P2R reference P2R reference 67209
Maker reference Maker reference 581249

SPRING DE CENTRE STAND OEM PIAGGIO COMMON A TOUTE LA RANGE-581249

More information

Quantity required : 1

NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440

12
P2R reference P2R reference 63765
Maker reference Maker reference 0024405

NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440

More information

Quantity required : 1

295592 - PLAQUETTE

14
P2R reference P2R reference 66284
Maker reference Maker reference 295592

295592 - PLAQUETTE

More information

Quantity required : 2

BILLE (6) OEM PIAGGIO COMMON A LA RANGE-2955916

15
P2R reference P2R reference 181953
Maker reference Maker reference 295591

BILLE (6) OEM PIAGGIO COMMON A LA RANGE-2955916

More information

Quantity required : 2

BILLE (6) OEM PIAGGIO COMMON A LA RANGE-2955916

15
P2R reference P2R reference 181953
Maker reference Maker reference 2955916

BILLE (6) OEM PIAGGIO COMMON A LA RANGE-2955916

More information

Quantity required : 2

SPRING OF PRESSURE DE BILLE PASSENGER FOOTREST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-2955909

16
P2R reference P2R reference 162561
Maker reference Maker reference 2955909

SPRING OF PRESSURE DE BILLE PASSENGER FOOTREST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-2955909

More information

Quantity required : 2

SPRING OF PRESSURE DE BILLE PASSENGER FOOTREST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-2955909

16
P2R reference P2R reference 162561
Maker reference Maker reference 295590

SPRING OF PRESSURE DE BILLE PASSENGER FOOTREST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-2955909

More information

Quantity required : 2

REST FEET PASSENGER LEFT/RIGHT OEM PIAGGIO 50 NRG, TYPHOON/GILERA 50 RUNNER-295451

19
P2R reference P2R reference 66280
Maker reference Maker reference 295451

REST FEET PASSENGER LEFT/RIGHT OEM PIAGGIO 50 NRG, TYPHOON/GILERA 50 RUNNER-295451

More information

Quantity required : 2

ROD PIVOT FOOTREST OEM PIAGGIO 50 NRG, STALKER-295593

20
P2R reference P2R reference 66285
Maker reference Maker reference 295593

ROD PIVOT FOOTREST OEM PIAGGIO 50 NRG, STALKER-295593

More information

Quantity required : 2

573501 - REPOSE PIED GAUCHE

21
P2R reference P2R reference 80225
Maker reference Maker reference 573501

573501-FOOTREST LEFT

More information

Quantity required : 1

573502 - REPOSE PIED DROIT

21
P2R reference P2R reference 80226
Maker reference Maker reference 573502

573502-FOOTREST RIGHT

More information

Quantity required : 1

WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058

22
P2R reference P2R reference 63779
Maker reference Maker reference 0030585

WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058

More information

Quantity required : 2

SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119

23
P2R reference P2R reference 65646
Maker reference Maker reference 0311195

SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119

More information

Quantity required : 2

BRACKET LOCK OEM PIAGGIO 125 X7, X8, X9, X-EVO, GTS, LX, FLY, BEVERLY/GILERA 125 RUNNER/APRILIA 50 SR MOTARD-298604

24
P2R reference P2R reference 66306
Maker reference Maker reference 298604

BRACKET LOCK OEM PIAGGIO 125 X7, X8, X9, X-EVO, GTS, LX, FLY, BEVERLY/GILERA 125 RUNNER/APRILIA 50 SR MOTARD-298604

More information

Quantity required : 1

GASKET SHAFT OF STAND OEM PIAGGIO COMMON A LA RANGE-273754

25
P2R reference P2R reference 66127
Maker reference Maker reference 273754

GASKET SHAFT OF STAND OEM PIAGGIO COMMON A LA RANGE-273754

More information

Quantity required : 2
