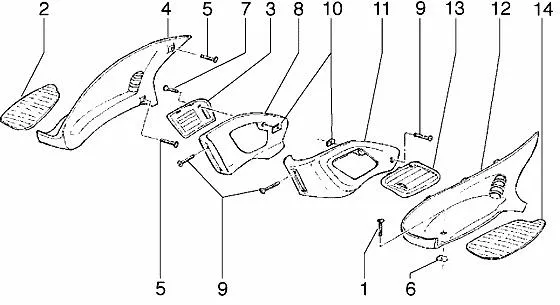

Vehicle Exploded View - GILERA RUNNER 180 VXR 1998-2005 GILERA

Châssis : T30 CARENAGES
Carenages
Search
SCREW - (6x20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830

1
P2R reference P2R reference 66043
Maker reference Maker reference 259830
Replaced by référence Replaced by référence 73367

SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830

More information

Quantity required : 2

RIGHT FOOTREST MAT "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 1998>2005 -299776-

2
P2R reference P2R reference 78079
Maker reference Maker reference 299776

RIGHT FOOTREST MAT "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 1998>2005 -299776-

More information

Quantity required : 1

GRID -AIRFLOW-RIGHT "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 1998>2004 -5756590028-

3
P2R reference P2R reference 80641
Maker reference Maker reference 5756590028

GRID -AIRFLOW-RIGHT "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 1998>2004 -5756590028-

More information

Quantity required : 1

298134000D - REPOSE PIED DR GRISE

4
P2R reference P2R reference 77965
Maker reference Maker reference 298134000D

298134000D - REPOSE PIED DR GRISE

More information

Quantity required : 1

SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498

5
P2R reference P2R reference 66301
Maker reference Maker reference 297498

SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498

More information

Quantity required : 4

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

6
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 4

SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178606

7
P2R reference P2R reference 96280
Maker reference Maker reference 270723

SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178606

More information

Quantity required : 7

2988930043 - PRISE AIR GRISE DRT

8
P2R reference P2R reference 78015
Maker reference Maker reference 2988930043

2988930043 - PRISE AIR GRISE DRT

More information

Quantity required : 1

SCREW AUTOTARAUDEUSE (4. 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015911

9
P2R reference P2R reference 65403
Maker reference Maker reference 015911

SCREW AUTOTARAUDEUSE (4. 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015911

More information

Quantity required : 2

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

10
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

More information

Quantity required : 8

2988920043 - PRISE AIR G GRISE EX 298892000A

11
P2R reference P2R reference 78010
Maker reference Maker reference 2988920043

2988920043 - PRISE AIR G GRISE EX 298892000A

More information

Quantity required : 1

298133000D - REPOSE PIED G GRIS

12
P2R reference P2R reference 77962
Maker reference Maker reference 298133000D

298133000D-FOOTREST G GREY

More information

Quantity required : 1

GRILLE AERATION LEFT OEM PIAGGIO GILERA 50-125 RUNNER 1998 > 2004-5756580028

13
P2R reference P2R reference 80640
Maker reference Maker reference 5756580028

GRILLE AERATION LEFT OEM PIAGGIO GILERA 50-125 RUNNER 1998 > 2004-5756580028

More information

Quantity required : 1

MAT LEFT OEM PIAGGIO GILERA 50-125 RUNNER 1998 > 2005-299775

14
P2R reference P2R reference 78078
Maker reference Maker reference 299775

MAT LEFT OEM PIAGGIO GILERA 50-125 RUNNER 1998 > 2005-299775

More information

Quantity required : 1
