Vehicle Exploded View - GILERA RUNNER 180 VXR 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

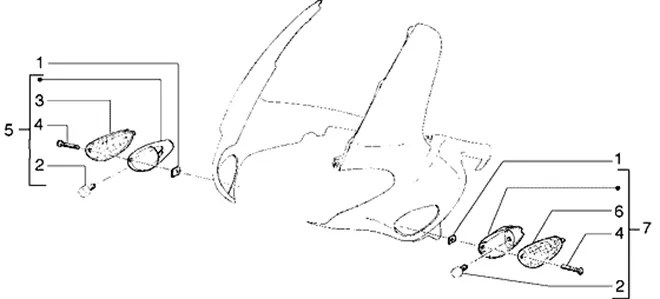

Connexions électriques : T47 FEUX DE DIRECTION AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/659/Runner_180_VXR_1998-2005_T47.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/1/img/72921.jpg)
1 |
NUT SHEET METAL (3. 5 PARKER) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM017403 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/8/img/65798.jpg)
2 |
AMPOULE/LAMPE 12V 10W BA15S/R10 OEM PIAGGIO COMMON A LA RANGE-181746 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/7/8/8/img/77788.jpg)
3 |
294568 - TRANSPARENT DRT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/7/img/65407.jpg)
4 |
SCREW PARKER (3. 5X19) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015994 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/7/8/7/img/77787.jpg)
5 |
FLASHER-FRONT-RIGHT "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 1998>2004 -294567- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/7/8/6/img/77786.jpg)
6 |
294566 - TRANSPARENT G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/7/8/5/img/77785.jpg)
7 |
FLASHER-FRONT-LEFT "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 1998>2004 -294562- More informationQuantity required : 1 |
