Vehicle Exploded View - GILERA RUNNER 180 VXR 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

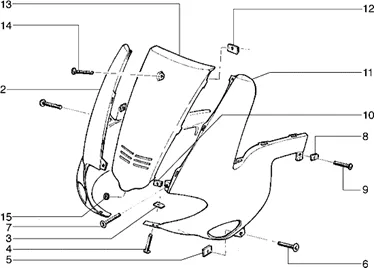

Châssis : T26 CARENAGES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/659/Runner_180_VXR_1998-2005_T26.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/3/img/65403.jpg)
1 |
SCREW AUTOTARAUDEUSE (4. 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015911 More informationQuantity required : 7 |
|||||||||
1 |
299107000C - PROTECTION INF EX-299107 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
1 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830 More informationQuantity required : 2 |
|||||||||
|
1 |
298132000D - CACHE SUP AV GRISE More informationQuantity required : 1 |
|||||||||
|
2 |
FRONT RIGHT SIDE BODY "PIAGGIO GENUINE PART" GILERA RUNNER 1998>2004 RAW -4296005- More informationQuantity required : 1 |
|||||||||
|
2 |
42960050B5 - FLANC AV DROIT RUNNER GRIS SATINO 682 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
2 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 8 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
2 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 3 |
|||||||||
|
2 |
RIGHT FOOTREST MAT "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 1998>2005 -299776- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
2 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 3 |
|||||||||
|
3 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 4 |
|||||||||
|
3 |
620310 - TRAPPE VISITE More informationQuantity required : 1 |
|||||||||
|
3 |
62031000E1 - TRAPPE VISITE More informationQuantity required : 1 |
|||||||||
|
3 |
GRID -AIRFLOW-RIGHT "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 1998>2004 -5756590028- More informationQuantity required : 1 |
|||||||||
|
3 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 1 |
|||||||||
|
4 |
SCREW AUTOTARAUDEUSE (4. 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015911 More informationQuantity required : 4 |
|||||||||
|
4 |
4298005 - AILE AR DROITE RUNNER BRUT More informationQuantity required : 1 |
|||||||||
|
4 |
42980050E1 - AILE AR DROITE RUNNER GRIS 121 More informationQuantity required : 1 |
|||||||||
|
4 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 3 |
|||||||||
|
4 |
298134000D - REPOSE PIED DR GRISE More informationQuantity required : 1 |
|||||||||
|
4 |
299384000D - COUVERCLE CENTRAL More informationQuantity required : 1 |
|||||||||
|
5 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 4 |
|||||||||
|
5 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/0/img/96280.jpg)
5 |
SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178606 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
5 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 4 |
|||||||||
|
6 |
SCREW AUTOTARAUDEUSE (4. 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015911 More informationQuantity required : 4 |
|||||||||
|
6 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 1 |
|||||||||
|
6 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
7 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 2 |
|||||||||
|
7 |
576008-LEVER More informationQuantity required : 1 |
|||||||||
|
7 |
SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178606 More informationQuantity required : 7 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/7/3/img/78073.jpg)
7 |
CLIPS ACCROCHAGE OEM PIAGGIO COMMON A LA RANGE-299693 More informationQuantity required : 5 |
|||||||||
|
8 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/6/0/img/63860.jpg)
8 |
EPINGLE DE LOCK OEM PIAGGIO COMMON A LA RANGE-008808 More informationQuantity required : 1 |
|||||||||
|
8 |
2988930043 - PRISE AIR GRISE DRT More informationQuantity required : 1 |
|||||||||
|
8 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 3 |
|||||||||
|
9 |
SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178606 More informationQuantity required : 2 |
|||||||||
|
9 |
465054 - RESSORT More informationQuantity required : 1 |
|||||||||
|
9 |
SCREW AUTOTARAUDEUSE (4. 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015911 More informationQuantity required : 2 |
|||||||||
|
9 |
8156005 - COUVERCLE More informationQuantity required : 1 |
|||||||||
|
9 |
81560050G4 - ELEMENT More informationQuantity required : 1 |
|||||||||
|
9 |
81560050R4 - COUVERCLE 879 More informationQuantity required : 1 |
|||||||||
|
10 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
|||||||||
|
10 |
299387 - RESSORT More informationQuantity required : 1 |
|||||||||
|
10 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 8 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
10 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 2 |
|||||||||
|
11 |
FRONT LEFT SIDE BODY "PIAGGIO GENUINE PART" GILERA RUNNER 1998>2004 RAW -4295005- More informationQuantity required : 1 |
|||||||||
|
11 |
42950050B5 - FLANC AV GAUCHE RUNNER GRIS 682 More informationQuantity required : 1 |
|||||||||
|
11 |
576719 - CLE EBAUCHE RUNNER 50/125/180/200 More informationQuantity required : 1 |
|||||||||
|
11 |
2988920043 - PRISE AIR G GRISE EX 298892000A More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/4/0/img/66340.jpg)
11 |
SCREW BTR (6X35) OEM PIAGGIO COMMON A LA RANGE-323990 More informationQuantity required : 2 |
|||||||||
|
12 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/9/4/3/img/80943.jpg)
12 |
IGNITION SWITCH/LOCK RUNNER 50/125/180/200 2005 <-576718 More informationQuantity required : 1 |
|||||||||
|
12 |
298133000D-FOOTREST G GREY More informationQuantity required : 1 |
|||||||||
|
12 |
29889700B5 - POIGNEE More informationQuantity required : 1 |
|||||||||
|
12 |
29889700E1 - POIGNEE 121 More informationQuantity required : 1 |
|||||||||
|
13 |
FRONT SHIELD -CENTRAL- "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 1998>2005 RAW TO BE PAINT -4294005- More informationQuantity required : 1 |
|||||||||
|
13 |
FRONT SHIELD -CENTRAL- "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 1998>2005 RED 879 -42940050R4- More informationQuantity required : 1 |
|||||||||
|
13 |
FRONT SHIELD -CENTRAL- "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 1998>2005 YELLOW 815 -42940050G4- More informationQuantity required : 1 |
|||||||||
|
13 |
5748755 - AILE AR GAUCHE RUNNER BRUT More informationQuantity required : 1 |
|||||||||
|
13 |
57487550E1 - AILE AR GAUCHE RUNNER GRIS 121 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/6/4/0/img/80640.jpg)
13 |
GRILLE AERATION LEFT OEM PIAGGIO GILERA 50-125 RUNNER 1998 > 2004-5756580028 More informationQuantity required : 1 |
|||||||||
|
13 |
SCREW AUTOTARAUDEUSE (4. 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015911 More informationQuantity required : 2 |
|||||||||
|
14 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/7/8/img/78078.jpg)
14 |
MAT LEFT OEM PIAGGIO GILERA 50-125 RUNNER 1998 > 2005-299775 More informationQuantity required : 1 |
|||||||||
|
15 |
272861-CAP More informationQuantity required : 1 |
|||||||||
