Vehicle Exploded View - APRILIA RSV4 1100 Factory E5 ABS 2023 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

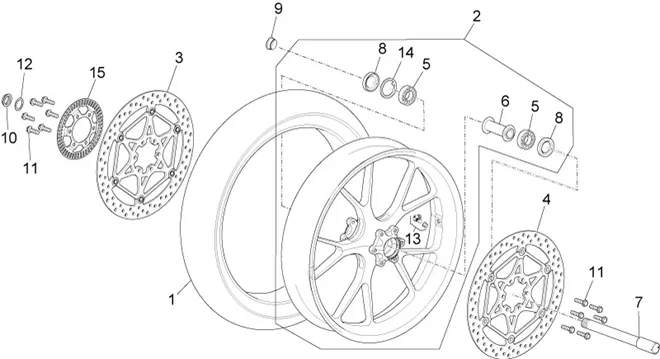

Roues : 05.01 ROUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1358/RSV4_1100_Factory_E5_ABS_2023_2024_EMEA_05.01.png)
1 |
2B006862-TYRE FRONT (PIRELLI) More informationQuantity required : 1 |
||||||
|
1 |
897596-TYRE FRONT More informationQuantity required : 1 |
||||||
|
2 |
2B012283-WHEEL AV NUE OR More informationQuantity required : 1 |
||||||
|
2 |
RIM/FRONT WHEEL OEM PIAGGIO 1000 APRILIA RSV4 FACTORY 2015-2018 >/1100 APRILIA RSV4 FACTORY E5 2023 > RED-2B011682 More informationQuantity required : 1 |
||||||
|
2 |
2B011608-WHEEL AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/5/6/0/img/145560.jpg)
3 |
BRAKE DISC FRONT RIGHT (330 MM) OEM PIAGGIO APRILIA 1000 RSV-4 2017 >, 1100 RSV-4 2019 >, 1100 TUONO V4 2017 >-2B001135 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/5/6/1/img/145561.jpg)
4 |
BRAKE DISC FRONT LEFT (330 MM) OEM PIAGGIO APRILIA 1000 RSV-4 2017 >, 1100 RSV-4 2019 >, TUONO V4 2017 >-2B001136 More informationQuantity required : 1 |
||||||
|
5 |
BEARING (25X47X12) DE FRONT WHEEL OEM APRILIA/MOTO GUZZI-AP8110094 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/8/6/img/71586.jpg)
6 |
SPACER INTERNE DE FRONT WHEEL OEM PIAGGIO APRILIA 1000 RSV-2, RSV-4, TUONO-AP8125843 More informationQuantity required : 1 |
||||||
|
7 |
2B008946-WHEEL SPINDLE AV More informationQuantity required : 1 |
||||||
|
8 |
BUSH ETANCHEITE FRONT WHEEL (30X47X7) OEM APRILIA/MOTO GUZZI-AP8125841 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/5/img/71575.jpg)
9 |
SPACER EXTERIEURE RIGHT FRONT WHEEL OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA-AP8125728 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/8/4/img/50984.jpg)
10 |
NUT DE WHEEL OEM APRILIA COMMON A LA RANGE MOTO-AP8152335 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
11 |
SCREW FLANGE TH (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8152286 More informationQuantity required : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/7/img/71967.jpg)
12 |
WASHER (25. 2X36X1) WHEEL SPINDLE FRONT OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA-AP8152323 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/3/7/img/71237.jpg)
13 |
VALVE TUBELESS COUDEE 90- OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8104728 More informationQuantity required : 1 |
||||||
|
14 |
CLIPS/CIRCLIPS OEM APRILIA (D47) COMMON A LA RANGE-AP8125842 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/5/9/1/img/145591.jpg)
15 |
CODEUR/WHEEL PHONIQUE ABS FRONT OEM PIAGGIO APRILIA 1000 RSV-4, 1100 RSV-4, TUONO V4-2B003169 More informationQuantity required : 1 |
