Vehicle Exploded View - APRILIA RSV4 1100 Factory E5 ABS 2023 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

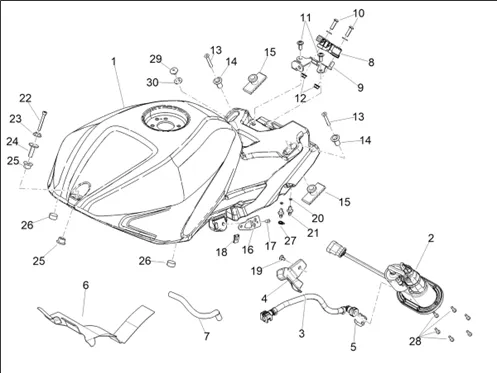

Réservoir : 09.01 RÉSERVOIR ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1358/RSV4_1100_Factory_E5_ABS_2023_2024_EMEA_09.01.png)
1 |
2H005386600Q4-FUEL TANK More informationQuantity required : 1 |
||||||
|
1 |
2H006090600Z1-FUEL TANK More informationQuantity required : 1 |
||||||
|
1 |
2H005386600NV-FUEL TANK More informationQuantity required : 1 |
||||||
|
1 |
2B008854 FUEL TANK WITHOUT FUEL PROBE More informationQuantity required : 1 |
||||||
|
2 |
2B010727-PUMP A FUEL More informationQuantity required : 1 |
||||||
|
3 |
2B007450 COMPLETE FUEL HOSE More informationQuantity required : 1 |
||||||
|
4 |
B044550-BRACKET More informationQuantity required : 1 |
||||||
|
5 |
2B007735 FUEL HOSE SECURE LOCK More informationQuantity required : 1 |
||||||
|
6 |
2B008438 FUEL TANK THERMAL PROTECTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/3/9/4/img/42394.jpg)
7 |
HOSE PURGE TANK OEM APRILIA 1000-1100 RSV4 2009 >-895959 More informationQuantity required : 1 |
||||||
|
8 |
2D000517-DETECTEUR More informationQuantity required : 1 |
||||||
|
9 |
2B002985-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/3/0/img/72330.jpg)
10 |
SCREW BTR HEAD BOMBEE (6X20) INOX OEM PIAGGIO COMMON A LA RANGE-AP8224470 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/4/7/img/132947.jpg)
11 |
SCREW FLANGE BTR (6X12) OEM PIAGGIO COMMON A LA RANGE-GU98210612 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
12 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/4/3/img/67143.jpg)
13 |
SCREW HANDLEBAR END OEM PIAGGIO COMMON A TOUTE LA RANGE-576836 More informationQuantity required : 2 |
||||||
|
14 |
893273-SPACER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/2/3/img/46623.jpg)
15 |
RUBBER TANK OEM PIAGGIO COMMON A LA RANGE-AP8120663 More informationQuantity required : 2 |
||||||
|
16 |
858886-BRACKET SIDE PANEL G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/3/img/71903.jpg)
17 |
SCREW BTR HEAD BOMBEE (5X10) OEM PIAGGIO COMMON A LA RANGE-AP8150538 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
18 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
19 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/4/img/71424.jpg)
20 |
O RING OF CANALISATION FUEL OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8120965 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/7/8/0/2/img/37802.jpg)
21 |
INSERT FUEL TANK OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-2B001203 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/5/img/71875.jpg)
22 |
SCREW BTR (6X45) OEM PIAGGIO COMMON A LA RANGE-AP8150403 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/2/img/71902.jpg)
23 |
WASHER SPECIALE OEM PIAGGIO COMMON A LA RANGE MOTO-AP8150536 More informationQuantity required : 1 |
||||||
|
24 |
2B006465 BUSH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/1/img/71151.jpg)
25 |
RUBBER MOUNT/RUBBER EN T OEM PIAGGIO COMMON A LA RANGE-AP8101372 More informationQuantity required : 2 |
||||||
|
26 |
2B007824 FUEL TANK ADHESIVE BUMPER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
27 |
CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595 More informationQuantity required : 1 |
||||||
|
28 |
2B002567-SCREW More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/2/0/1/6/img/52016.jpg)
29 |
SCREW OF MOUNTING DE FUEL TANK OEM PIAGGIO APRILIA 1000-1100 RSV-4, TUONO V4, 750-900-1200 DORSODURO, 1200 CAPONORD-AP8161127 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/7/img/71847.jpg)
30 |
WASHER PLATE (5X20X1. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150255 More informationQuantity required : 1 |
