Vehicle Exploded View - APRILIA RSV4 1100 Factory E5 ABS 2023 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

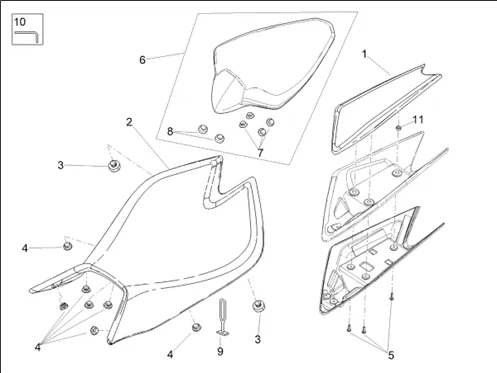

Carrosserie : 02.12 SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1358/RSV4_1100_Factory_E5_ABS_2023_2024_EMEA_02.12.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/1/2/1/img/176121.jpg)
1 |
COUSSIN DE SEAT OEM APRILIA 660 RS 2022 >, 1100 RSV4 2021 >-2B006994 More informationQuantity required : 1 |
||||||
2 |
2B009898000C2-DRIVER SADDLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/4/6/img/127146.jpg)
3 |
BUFFER DE SEAT OEM APRILIA 1000-1100 RSV4 2009 >-B043941 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/1/9/1/img/62191.jpg)
4 |
BUFFER RUBBER DE SEAT OEM APRILIA 1000-1100 RSV4, TUONO-B043933 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/0/img/96280.jpg)
5 |
SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178606 More informationQuantity required : 3 |
||||||
|
6 |
2B006993000C1 SEAT PASSENGER More informationQuantity required : 1 |
||||||
|
7 |
BUFFER RUBBER DE SEAT OEM APRILIA 1000-1100 RSV4, TUONO-B043933 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/8/9/2/img/140892.jpg)
8 |
BUFFER RUBBER DE SEAT OEM APRILIA RSV4 TUONO E5-2B002692 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/6/img/71386.jpg)
9 |
SANGLE ELASTIC OEM PIAGGIO COMMON A LA RANGE-AP8120177 More informationQuantity required : 1 |
||||||
|
10 |
894195-TOOLS KEY More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/5/9/9/img/72599.jpg)
11 |
SPACER OEM PIAGGIO COMMON A LA RANGE APRILIA-AP9100174 More informationQuantity required : 1 |
