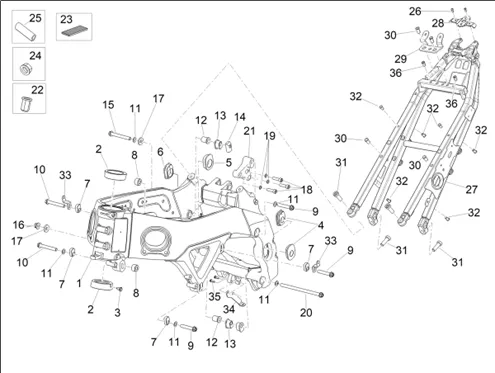

Châssis/coque : 01.01 CHÂSSIS/COQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1358/RSV4_1100_Factory_E5_ABS_2023_2024_EMEA_01.01.png)
1 |
2B005652-CHÃ - SSIS, ANODISÃ More informationQuantity required : 1 |
||||||
|
2 |
2B005850-BUSH More informationQuantity required : 2 |
||||||
|
3 |
858729-STUD More informationQuantity required : 2 |
||||||
|
4 |
2B001451-INSERT More informationQuantity required : 2 |
||||||
|
5 |
2B001453-INSERT More informationQuantity required : 1 |
||||||
|
6 |
2B001452-INSERT More informationQuantity required : 1 |
||||||
|
7 |
8587176-INSERT More informationQuantity required : 4 |
||||||
|
8 |
858718-SPACER More informationQuantity required : 2 |
||||||
|
9 |
SCREW FLANGE TH (10X55) OEM PIAGGIO COMMON A LA RANGE-AP8152410 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/0/3/8/img/51038.JPG)
10 |
AP8152481-SCREW TE M10 X 70 FLANGIATA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/6/img/71856.jpg)
11 |
WASHER ELASTIC (D10. 4) OEM PIAGGIO COMMON A LA RANGE-AP8150292 More informationQuantity required : 7 |
||||||
|
12 |
858710-BUSH DE REGLAGE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/5/2/6/img/40526.jpg)
13 |
INSERT OEM MOPED SWINGARM POS. + 5 OEM APRILIA 1000-1100 RSV4 2009 >-858714 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/7/8/3/1/img/37831.jpg)
14 |
INSERT OEM MOPED SWINGARM POS.-5 OEM APRILIA 1000-1100 RSV4 2015 >-2B001454 More informationQuantity required : 1 |
||||||
|
15 |
AP8152398-SCREW FLANGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
16 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/0/1/8/img/51018.jpg)
17 |
WASHER PLATE (10, 5X25X4) OEM PIAGGIO COMMON A LA RANGE-AP8152441 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/3/img/71823.jpg)
18 |
SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8150107 More informationQuantity required : 3 |
||||||
|
19 |
WASHER CANNELEE (8. 4X13) OEM PIAGGIO COMMON A LA RANGE-AP8152154 More informationQuantity required : 3 |
||||||
|
20 |
858712-PIVOT More informationQuantity required : 1 |
||||||
|
21 |
2B001354-BRACKET ENGINE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/0/5/img/71205.jpg)
22 |
INSERT FILETEE ON FRAME OEM PIAGGIO COMMON A LA RANGE MOTO-AP8102902 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/1/4/img/46214.jpg)
23 |
AP8117033-ADHESIVE SPONGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/0/5/img/50905.jpg)
24 |
NUT FLANGE (D6) OEM PIAGGIO COMMON A LA RANGE-AP8150506 More informationQuantity required : 4 |
||||||
|
25 |
AP8144707-GUARNIZIONE TELAIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/4/img/71924.jpg)
26 |
SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152174 More informationQuantity required : 1 |
||||||
|
27 |
2B014017-ACCROCHE-SEAT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/1/1/3/img/176113.jpg)
28 |
FLANGE BRACKET LAMP REAR OEM APRILIA 1100 RSV4, TUONO 2021 >-2B007138 More informationQuantity required : 1 |
||||||
|
29 |
2B008129 SADDLE BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/7/img/71187.jpg)
30 |
RIVET PLASTIQUE FILETE (M6) OEM APRILIA COMMON A LA RANGE-AP8102544 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/8/7/img/50887.jpg)
31 |
SCREW BTR (10X30) OEM PIAGGIO COMMON A LA RANGE-AP8150469 More informationQuantity required : 2 |
||||||
|
32 |
RIVET FILETE (M5) OEM PIAGGIO COMMON A LA RANGE-AP8104390 More informationQuantity required : 8 |
||||||
|
33 |
2B008130 BRACKET More informationQuantity required : 1 |
||||||
|
34 |
2B008185 LOWER FAIRING FIXING BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
35 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/2/img/72142.jpg)
36 |
RIVET FILETE (M5) OEM PIAGGIO COMMON A LA RANGE-AP8201755 More informationQuantity required : 2 |
