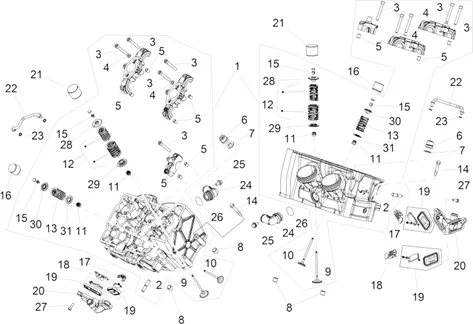

Moteur : 03.10 CULASSE - SOUPAPES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1358/RSV4_1100_Factory_E5_ABS_2023_2024_EMEA_03.10.png)
1 |
1A0131435-CYLINDER HEAD More informationQuantity required : 2 |
||||||
|
2 |
857035-STUD More informationQuantity required : 8 |
||||||
|
3 |
8570856-SCREW More informationQuantity required : 20 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/2/6/7/img/40267.jpg)
4 |
WASHER CUIVRE D6 OEM PIAGGIO COMMON A LA RANGE-857042 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/5/6/img/66356.jpg)
5 |
BUSH SPACER DE CENTRAGE (8X10) OEM PIAGGIO COMMON A LA RANGE-411209 More informationQuantity required : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/5/6/img/42756.jpg)
6 |
NUT FLANGE (10X100) OEM PIAGGIO COMMUNU A LA RANGE-897434 More informationQuantity required : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/3/3/8/img/40338.jpg)
7 |
WASHER PLATE (10, 5X19X1. 6) OEM PIAGGIO COMUN A LA RANGE-857208 More informationQuantity required : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/5/2/img/68552.jpg)
8 |
STUD CALIBRE 11. 8X10 OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI ET LES MAXI SCOOTER 400-500 CC-825597 More informationQuantity required : 4 |
||||||
|
9 |
2A000178-VALVE D'ADMISSION More informationQuantity required : 8 |
||||||
|
10 |
2A000236-SOUP. DECHARGE More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/9/3/img/66493.jpg)
11 |
GASKET/BUSH OF VALVE OEM PIAGGIO COMMON A LA RANGE-436438 More informationQuantity required : 16 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/4/9/5/img/145495.jpg)
12 |
KIT SPRING VALVE INTAKE OEM PIAGGIO APRILIA 1000-1100 RSV-4 2017 >-1A008432 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/4/9/6/img/145496.jpg)
13 |
SPRING VALVE D'ECHAPPEMENT OEM PIAGGIO APRILIA 1000-1100 RSV-4 2017 >-1A008435 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/6/9/img/66569.jpg)
14 |
SCREW FLANGE TH (6X55) OEM PIAGGIO COMMON A LA RANGE-478895 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/2/6/0/img/40260.jpg)
15 |
HALF-LUNE VALVE OEM PIAGGIO APRILIA 1000-1100 RSV-4, TUONO V4 1000-1100-857024 More informationQuantity required : 32 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/6/9/2/img/96692.jpg)
16 |
CUP DE VALVE OEM PIAGGIO APRILIA 1000-1100 RSV-4, 450-550 RXV, SXV-855632 More informationQuantity required : 8 |
||||||
|
17 |
857046-PLATE More informationQuantity required : 2 |
||||||
|
18 |
857047-PLATE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/2/7/0/img/40270.jpg)
19 |
MEMBRANE AIR OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO-GUZZI-857045 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/2/6/9/img/40269.jpg)
20 |
COVER MEMBRANE AIR OEM APRILIA 1000-1100 RSV4, TUONO/660 RS, TUONO 2020 >-857044 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/7/6/5/3/img/37653.jpg)
21 |
CUP VALVE INTAKE OEM PIAGGIO 1000-1100 RSV4 APRILIA 2015 >-2A000337 More informationQuantity required : 8 |
||||||
|
22 |
857017-HOSE OIL More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/6/3/img/70463.jpg)
23 |
O-RING OEM APRILIA COMMON A LA RANGE-873097 More informationQuantity required : 4 |
||||||
|
24 |
8570164-HEAD OUTLET WATER MANIFOLD More informationQuantity required : 2 |
||||||
|
25 |
1A003153-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/2/8/0/img/40280.jpg)
26 |
O-RING OEM PIAGGIO COMMON A LA RANGE-857083 More informationQuantity required : 2 |
||||||
|
27 |
857048-SCREW More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/5/4/7/img/145547.jpg)
28 |
COUPELLE SUPERIEURE VALVE INTAKE OEM PIAGGIO RSV4 2017 >-2A000872 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/5/2/4/img/145524.jpg)
29 |
COUPELLE INFERIEURE VALVE INTAKE OEM PIAGGIO RSV4 2017 >-2A000613 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/5/3/5/img/145535.jpg)
30 |
COUPELLE SUPERIEURE VALVE EXHAUST OEM PIAGGIO RSV4 2017 >-2A000796 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/5/3/4/img/145534.jpg)
31 |
COUPELLE INFERIEURE VALVE EXHAUST OEM PIAGGIO RSV4 2017 >-2A000795 More informationQuantity required : 2 |
