Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 SP 1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

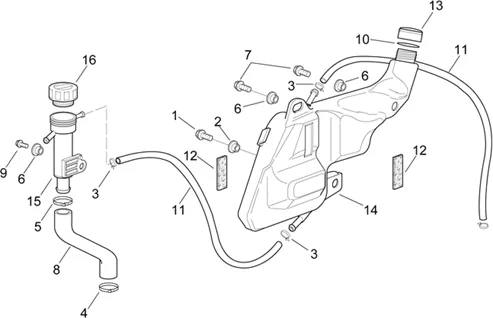

Chassis : 28.23 VASE D'EXPANSION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/743/RSV_1000_SP_1999_28.23.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
1 |
SCREW FLANGE TH (5X15) OEM PIAGGIO COMMON A LA RANGE-AP8152273 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/1/img/71401.jpg)
2 |
NUT (M5) WITH INSERT RUBBER OEM PIAGGIO COMMON A LA RANGE DERBI, APRILIA ET MOTO-GUZZI-AP8120531 More informationQuantity required : 1 |
||||||
3 |
AP8102378-CLAMP More informationQuantity required : 3 |
||||||
|
4 |
CLAMP HOSE 17-25 OEM PIAGGIO COMMON A LA RANGE-AP8102732 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/2/3/img/45123.jpg)
5 |
CLAMP CLIC HOSE (23, 5X8) OEM PIAGGIO COMMON A LA RANGE-AP8101927 More informationQuantity required : 1 |
||||||
|
6 |
AP8221145-" BUSH EN " " T " " * " More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
7 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 2 |
||||||
|
8 |
AP8144032-HOSE PUMP-EMBOUT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
9 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 1 |
||||||
|
10 |
AP8120355 - JOINT BOUCHON HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/6/8/img/70868.jpg)
11 |
HOSE/FUEL HOSE (5. 5X10) OEM APRILIA-MOTO GUZZI COMMON A LA RANGE-896544 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/1/4/img/46214.jpg)
12 |
AP8117033-ADHESIVE SPONGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/0/4/img/46604.jpg)
13 |
AP8120354 - BOUCHON More informationQuantity required : 1 |
||||||
|
14 |
AP8138556 - VASE D'EXPANSION; More informationQuantity required : 1 |
||||||
|
15 |
AP8120988-TUBULURE REMPLISSAGE More informationQuantity required : 1 |
||||||
|
16 |
AP8102615-CAP * More informationQuantity required : 1 |
