Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 SP 1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

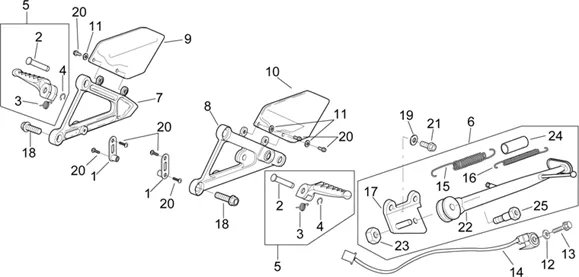

Chassis : 28.03 REPOSE-PIEDS BEQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/743/RSV_1000_SP_1999_28.03.PNG)
1 |
AP8134541-PLAQ. FIX. SIDE PANEL More informationQuantity required : 2 |
||||||
|
2 |
Pivot repose-pieds |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/5/4/img/71454.jpg)
3 |
SPRING RETOUR FOOTREST PILOTE OEM APRILIA 660-750-900-1000-1100 SHIVER, RSV, TUONO-AP8121224 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/4/img/71404.jpg)
4 |
CIRCLIPS OF REST FOOT OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8120573 More informationQuantity required : 2 |
||||||
|
5 |
R-pied pilote-paire; |
||||||
|
6 |
AP8146652 - BEQUILLE CPL.; More informationQuantity required : 1 |
||||||
|
7 |
AP8146336 - PEDANA DX PILOTA COMPLETA More informationQuantity required : 1 |
||||||
|
8 |
AP8146337 - PEDANA SX PILOTA COMPLETA More informationQuantity required : 1 |
||||||
|
9 |
Prot.marchep.pilote D carb.; |
||||||
|
10 |
Prot.marchep.pilote G carb.; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/4/img/109834.jpg)
11 |
WASHER ELASTIC COURBE (6X12) OEM PIAGGIO COMMON A LA RANGE-658830 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
12 |
WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
13 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/8/7/img/69687.jpg)
14 |
CONTACTEUR DE STAND OEM PIAGGIO APRILIA ATLANTIC 125-250-300-400-500, SCARABEO 500, 1000 RSV-2, FUTURA, CAPONORD, TUONO V2, FALCO, 50-125 RS/MOTO GUZZI 750 BREVA, NEVADA-00N05700601 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/2/img/72302.jpg)
15 |
SPRING EXTERNE RAPPEL STAND (GROS SPRING) OEM PIAGGIO COMMON A LA RANGE-AP8221197 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/6/img/71426.jpg)
16 |
SPRING RAPPEL STAND (PETIT SPRING) OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8121014 More informationQuantity required : 1 |
||||||
|
17 |
AP8134373 - PLAQUE BEQUILLE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/0/img/71950.jpg)
18 |
SCREW FLANGE TH (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8152288 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/6/img/71856.jpg)
19 |
WASHER ELASTIC (D10. 4) OEM PIAGGIO COMMON A LA RANGE-AP8150292 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
20 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/6/img/71966.jpg)
21 |
SCREW FLANGE TH (10X30) OEM PIAGGIO COMMON A LA RANGE-AP8152320 More informationQuantity required : 2 |
||||||
|
22 |
AP8146658 - BEQUILLE LATERALE; More informationQuantity required : 1 |
||||||
|
23 |
AP8150480-NUT AUTOFR. BAS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/5/img/71185.jpg)
24 |
PROTECTOR SPRING DE SIDE STAND OEM PIAGGIO COMMON A LA RANGE-AP8102524 More informationQuantity required : 1 |
||||||
|
25 |
AP8121375 - VIS FIX. BEQUILLE; More informationQuantity required : 1 |
