Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 SP 1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

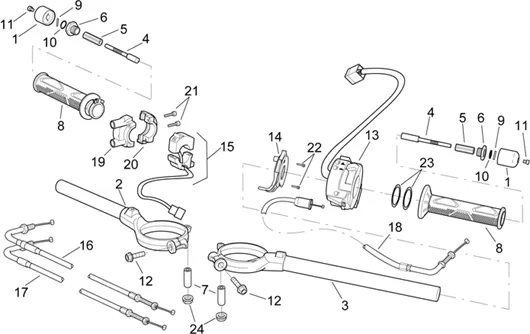

Chassis : 28.18 GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/743/RSV_1000_SP_1999_28.18.PNG)
1 |
AP8104573-POIDS ANTI VIBRATION * More informationQuantity required : 2 |
||||||
|
2 |
AP8118654 - SEMIMANUBRIO DX More informationQuantity required : 1 |
||||||
|
3 |
AP8118655 - SEMIMANUBRIO SX More informationQuantity required : 1 |
||||||
|
4 |
AP8121262 - ARBRE MASSE ANTIVIBRATILE More informationQuantity required : 2 |
||||||
|
5 |
Caoutchouc; |
||||||
|
6 |
AP8121261-TERM. POIDS ANTIVIB. More informationQuantity required : 2 |
||||||
|
7 |
Entretoise blocage dir.; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/3/3/9/img/46339.jpg)
8 |
REVETEMENT/GRIP RIGHT + LEFT OEM APRILIA COMMON A LA RANGE-AP8118501 More informationQuantity required : 1 |
||||||
|
9 |
Rouleau |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/7/img/71387.jpg)
10 |
O-RING MAITRE CYLINDER REAR (OR112) OEM PIAGGIO COMMON A LA RANGE-AP8120178 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/4/2/img/50942.jpg)
11 |
SCREW BTR (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8152040 More informationQuantity required : 2 |
||||||
|
12 |
Vis bride |
||||||
|
13 |
Déviateur feux gche |
||||||
|
14 |
GU01132330 - COMMANDE STARTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/4/5/8/img/47458.jpg)
15 |
RIGHT SWITCH "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, FALCO -AP8124260 More informationQuantity required : 1 |
||||||
|
16 |
AP8114342 - CABLE OUVERTURE GAZ; More informationQuantity required : 1 |
||||||
|
17 |
AP8114343 - CABLE FERMETURE GAZ; More informationQuantity required : 1 |
||||||
|
18 |
AP8114359 - CABLE STARTER; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/6/2/img/71362.jpg)
19 |
CAVALIER FRONT CONTROL DE THROTTLE OEM PIAGGIO APRILIA 1000 RSV-2, RSV-4/MOTO-GUZZI GRISO, BREVA, BELLAGIO-AP8118502 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/6/3/img/71363.jpg)
20 |
HALF CLAMP (REAR) FOR THROTTLE HANDLE "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, RSV-4/MOTO-GUZZI GRISO, BREVA, BELLAGIO -AP8118503 More informationQuantity required : 1 |
||||||
|
21 |
AP8118492-SCREW CALOTTE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/8/9/img/50889.JPG)
22 |
SCREW HEAD FRAISEE PLANE INOX (M3X20) OEM APRILIA-AP8150472 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/6/3/img/97063.jpg)
23 |
O-RING GRIP LEFT OEM APRILIA COMMON A LA RANGE-AP8120190 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
24 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
