Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 SP 1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

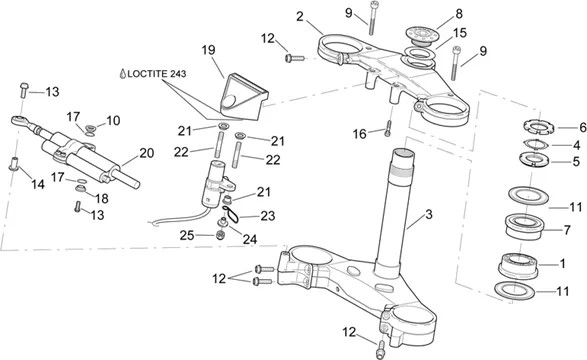

Chassis : 28.04 DIRECTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/743/RSV_1000_SP_1999_28.04.PNG)
1 |
Fourreau tube inf.cpl.; |
||||||
|
2 |
Plaque sup. fourche; |
||||||
|
3 |
Base avec tube; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/5/0/img/71450.jpg)
4 |
WASHER DE SECURITE DE STEERING OEM PIAGGIO APRILIA 1000 RSV, TUONO/MOTO-GUZZI BREVA, GRISO, NORGE, STELVIO-AP8121207 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/2/4/img/71524.jpg)
5 |
NUT DE STEERING OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8123642 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/2/5/img/71525.jpg)
6 |
NUT DE COLONNE DE STEERING OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8123643 More informationQuantity required : 1 |
||||||
|
7 |
AP8121364 - FOUREAU TUBE SUP.CPL.; More informationQuantity required : 1 |
||||||
|
8 |
AP8121346-BUSH FX. PL. SUP. More informationQuantity required : 1 |
||||||
|
9 |
Vis |
||||||
|
10 |
"Douille en ""T""" |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/2/3/img/71523.jpg)
11 |
ANNEAU PROTECTOR-POUSSIERE STEERING OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO-GUZZI-AP8123641 More informationQuantity required : 2 |
||||||
|
12 |
Vis bride |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
13 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152281 More informationQuantity required : 2 |
||||||
|
14 |
"Douille en ""T"""; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/6/img/71976.jpg)
15 |
WASHER FOR NUT TE DE FORK OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI ET APRILIA-AP8152384 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/6/img/71866.jpg)
16 |
SCREW A ARRACHEMENT/AUTO-CASSANTE BTR (8X15) OEM PIAGGIO COMMON A LA RANGE-AP8150349 More informationQuantity required : 2 |
||||||
|
17 |
Joint torique |
||||||
|
18 |
"Douille en ""T""" |
||||||
|
19 |
Support commutateur; |
||||||
|
20 |
Amortisseur de direction; |
||||||
|
21 |
Douille |
||||||
|
22 |
Axe fix.commutateur |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/6/img/71396.jpg)
23 |
GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-AP8120428 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/1/7/img/46917.jpg)
24 |
AP8121678 - DOUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/3/img/71883.jpg)
25 |
NUT AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8150431 More informationQuantity required : 2 |
