Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 SP 1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

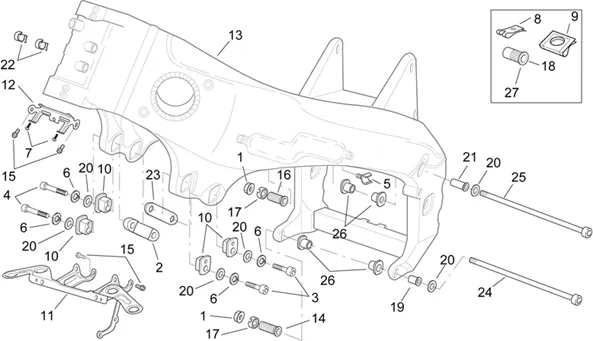

Chassis : 28.02 CHASSIS II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/743/RSV_1000_SP_1999_28.02.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
1 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301 More informationQuantity required : 2 |
||||||
2 |
Entretoise av. d.; |
||||||
|
3 |
AP8150048-SCREW More informationQuantity required : 2 |
||||||
|
4 |
AP8150086-SCREW More informationQuantity required : 2 |
||||||
|
5 |
AP8220269-GUIDE-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/6/img/71856.jpg)
6 |
WASHER ELASTIC (D10. 4) OEM PIAGGIO COMMON A LA RANGE-AP8150292 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
7 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
8 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
9 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
|
10 |
Intercal.fixat. moteur AV; |
||||||
|
11 |
Support inf. radiateur; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/9/2/2/img/48922.jpg)
12 |
BRACKET DE RADIATOR UPPER OEM PIAGGIO APRILIA 1000 RSV-2, FALCO, TUONO, FUTURA 2003 <-AP8134380 More informationQuantity required : 1 |
||||||
|
13 |
AP8135897 - CHASSIS FINI; More informationQuantity required : 1 |
||||||
|
14 |
AP8121997-BUSH DE REGLAGE INF. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
15 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 4 |
||||||
|
16 |
AP8121996-BUSH DE REGLAGE SUP. More informationQuantity required : 1 |
||||||
|
17 |
AP8121995-BUSH FIX. ENGINE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/7/img/71187.jpg)
18 |
RIVET PLASTIQUE FILETE (M6) OEM APRILIA COMMON A LA RANGE-AP8102544 More informationQuantity required : 10 |
||||||
|
19 |
"Douille en ""T"""; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/1/img/71811.jpg)
20 |
WASHER PLATE (10, 5X21X2) OEM PIAGGIO COMMON A LA RANGE-AP8150020 More informationQuantity required : 6 |
||||||
|
21 |
"Douille en ""T"""; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/0/img/72140.jpg)
22 |
GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8201727 More informationQuantity required : 2 |
||||||
|
23 |
Entretoise av. g.; |
||||||
|
24 |
Axe fixation inf.moteur; |
||||||
|
25 |
Axe fixation sup.moteur; |
||||||
|
26 |
Intercal.fixat.moteur AR; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/0/5/img/71205.jpg)
27 |
INSERT FILETEE ON FRAME OEM PIAGGIO COMMON A LA RANGE MOTO-AP8102902 More informationQuantity required : 2 |
