Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 1998-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

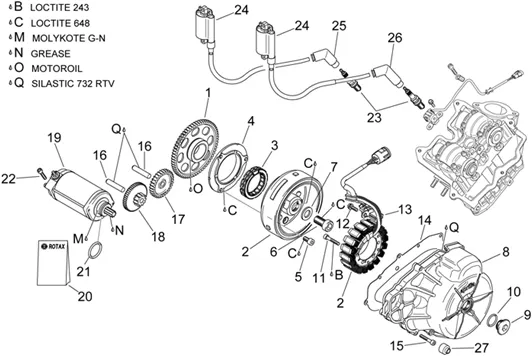

Moteur : 29.59 ALLUMAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/313/RSV_1000_1998-1999_29.59.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/2/6/6/img/38266.jpg)
1 |
"ONE WAY" STARTER PINION "PIAGGIO GENUINE PART" APRILIA 1000 CAPONORD, RSV-2, TUONO -AP0659110 More informationQuantity required : 1 |
||||||
2 |
AP0295830 - ALLUMAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/4/7/5/img/44475.jpg)
3 |
WHEEL LIBRE DE STARTER MOTOR OEM PIAGGIO APRILIA 1000 CAPONORD, RSV-2, TUONO-AP0659110 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/4/7/7/img/44477.jpg)
4 |
FLANGE ON ELECTRIC STARTER FREEWHEEL "PIAGGIO GENUINE PART" APRILIA 1000 CAPONORD 2001>2007, RSV-2 1998>2008, TUONO V2 2002>2009, FUTURA 2001>2003 -AP0659123 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/5/7/1/img/142571.jpg)
5 |
2R000308 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/1/5/img/127115.jpg)
6 |
SCREW - FOR IGNITION ROTOR (16X30) "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUONO V2, FUTURA, FALCO, CAPONORD -2R000261 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/3/5/2/img/44352_20251023155850.jpg)
7 |
IGNITION STATOR WASHER"PIAGGIO GENUINE PART" APRILIA 1000 CAPONORD, FUTURA, RSV-2, TUONO -AP0627270 More informationQuantity required : 1 |
||||||
|
8 |
AP0211651 - COUVERCLE D'ALLUMAGE More informationQuantity required : 1 |
||||||
|
9 |
Bouchon |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/2/7/7/img/44277.jpg)
10 |
O-RING CASING IGNITION OEM PIAGGIO APRILIA 1000 CAPONORD, RSV-2, FUTURA, TUONO, 125 RS, RX, SX-AP0430782 More informationQuantity required : 1 |
||||||
|
11 |
AP0241816 - VIS More informationQuantity required : 3 |
||||||
|
12 |
AP0240580 - VIS BRIDE More informationQuantity required : 2 |
||||||
|
13 |
AP0260870 - PROTECTION CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/4/6/6/img/44466.jpg)
14 |
GASKET CASING IGNITION OEM PIAGGIO APRILIA 1000 CAPONORD, RSV-2, TUNO V2, FUTURA-AP0650341 More informationQuantity required : 1 |
||||||
|
15 |
AP0241811 - VIS More informationQuantity required : 12 |
||||||
|
16 |
AP0229302 - PIVOT More informationQuantity required : 2 |
||||||
|
16 |
AP0229302 - PIVOT More informationQuantity required : 2 |
||||||
|
17 |
Pignon intermédiaire |
||||||
|
18 |
AP0634740 - ENGRENAGE DOUBLE More informationQuantity required : 1 |
||||||
|
19 |
AP0685965 - DEMARREUR More informationQuantity required : 1 |
||||||
|
20 |
AP0294354 - KIT REP DEM More informationQuantity required : 1 |
||||||
|
21 |
AP0250140 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
22 |
AP0840882 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/0/3/img/71103.jpg)
23 |
SPARK PLUG DCPR9E OEM PIAGGIO APRILIA 1000 RSV, FALCO, TUONO, FUTURA, PEGASO-AP0297942 More informationQuantity required : 4 |
||||||
|
24 |
AP0265480 - BOBINE HT More informationQuantity required : 2 |
||||||
|
25 |
AP0265244 - PIPE BOUGIE EXT.; More informationQuantity required : 2 |
||||||
|
26 |
AP0265246 - PIPE BOUGIE INT.; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/1/img/71151.jpg)
27 |
RUBBER MOUNT/RUBBER EN T OEM PIAGGIO COMMON A LA RANGE-AP8101372 More informationQuantity required : 1 |
