Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 1998-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

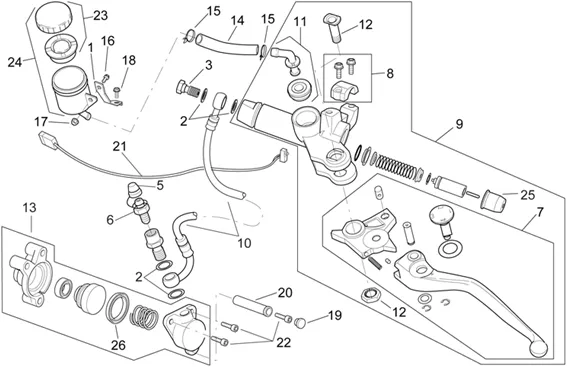

Chassis : 28.21 POMPE EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/313/RSV_1000_1998-1999_28.21.PNG)
1 |
AP8134394 - PLAQ. RESERV. HUILE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
2 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
3 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/0/0/7/img/46007.jpg)
4 |
AP8113762 - VIS PERCEE; More informationQuantity required : 1 |
||||||
|
5 |
AP8113230-CAPUCHON RENIFLARD More informationQuantity required : 1 |
||||||
|
6 |
AP8113761 - PURGE AIR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/0/0/4/img/46004.jpg)
7 |
LEVER CLUTCH OEM PIAGGIO APRILIA 1200 CAPONORD 2014 > 1200 DORSODURO 2010 >, 1000 RSV-2 1998 > 2003, 1000 TUONO 2002 > 2009-AP8113758 More informationQuantity required : 1 |
||||||
|
8 |
AP8113759 - CAVALIER; More informationQuantity required : 1 |
||||||
|
9 |
MAITRE CYLINDER CLUTCH OEM PIAGGIO APRILIA 1000 TUONO, RSV-2 1998 > 2003-854604 More informationQuantity required : 1 |
||||||
|
10 |
Tuyau embrayage |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/9/7/img/72197.jpg)
11 |
FITTING OF PUMP BRAKE REAR OEM APRILIA/MOTO-GUZZI COMMON A LA RANGE-AP8213057 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/9/7/6/img/140976.jpg)
12 |
SCREW OF MOUNTING LEVER BRAKE/CLUTCH OEM PIAGGIO APRILIA 1000 CAPONORD, RSV-2, TUONO V2, FUTURA-2B003040 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/5/2/1/img/45521.jpg)
13 |
CLUTCH COMMAND CYLINDER "PIAGGIO GENUINE PART" 1000 CAPONORD, RSV-2, TUONO V2, FUTURA -AP8106381 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/7/2/6/img/41726.jpg)
14 |
HOSE OIL DE BOCAL OF BRAKE OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA-890509 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
15 |
CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
16 |
SCREW FLANGE TH (5X15) OEM PIAGGIO COMMON A LA RANGE-AP8152273 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
17 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
18 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/6/3/7/img/49637.jpg)
19 |
BUTEE RUBBER OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8144158 More informationQuantity required : 1 |
||||||
|
20 |
AP8121293-SPACER CAOUT FAIRING More informationQuantity required : 1 |
||||||
|
21 |
AP8124398 - INTERR.EMBR.+CABLAGE; More informationQuantity required : 1 |
||||||
|
22 |
AP0241821 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/0/6/img/71306.jpg)
23 |
CAP BOCAL DE BRAKE MASTER CYLINDER OEM PIAGGIO MOTO-GUZZI 750 V7, NEVADA, BREVA/APRILIA 125 MX, RS, 650 PEGASO, 1000 RSN-2, 1200 CAPONORD, DORSODURO-AP8113553 More informationQuantity required : 1 |
||||||
|
24 |
AP8106382-TANK OIL CPL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/7/1/0/img/48710.jpg)
25 |
COIFFE LEVER CLUTCH OEM PIAGGIO COMMON A LA RANGE-AP8133522 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/5/4/img/71254.jpg)
26 |
GASKET OF RECEPTEUR CLUTCH OEM PIAGGIO APRILIA 1000 RSV-2, CAPONORD, FUTURA, FALCO, TUONO-AP8106935 More informationQuantity required : 1 |
