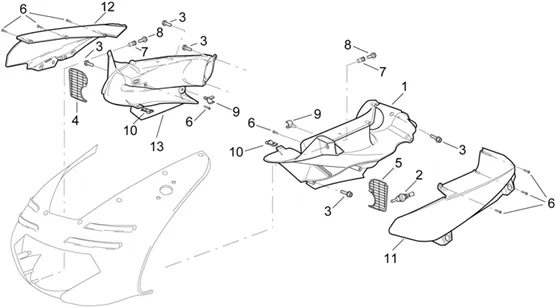

Chassis : 28.11 CARROSSERIE AV. - CONVOYEUR
Carrosserie av. - Convoyeur
Search
Convoyeur G, int., bleu co.;

1
P2R reference P2R reference
Maker reference Maker reference AP8138569

Convoyeur G, int., bleu co.;

AP8139415 - CONVOYEUR G, INT., NOIR;

1
P2R reference P2R reference 49340
Maker reference Maker reference AP8139415

AP8139415 - CONVOYEUR G, INT., NOIR;

More information

Quantity required : 1

AP8124300 - DETEC. TEMPER. AIR

2
P2R reference P2R reference 47464
Maker reference Maker reference AP8124300

AP8124300-DETEC. TEMPER. AIR

More information

Quantity required : 1

SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279

3
P2R reference P2R reference 71942
Maker reference Maker reference AP8152279

SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279

More information

Quantity required : 4

Grille prise air dr.;

4
P2R reference P2R reference
Maker reference Maker reference AP8138889

Grille prise air dr.;

Grille prise air g.;

5
P2R reference P2R reference
Maker reference Maker reference AP8138890

Grille prise air g.;

SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413

6
P2R reference P2R reference 71876
Maker reference Maker reference AP8150413

SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413

More information

Quantity required : 18

AP8121297-INSERT A EXPANSION

7
P2R reference P2R reference 46773
Maker reference Maker reference AP8121297

AP8121297-INSERT A EXPANSION

More information

Quantity required : 2

SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298

8
P2R reference P2R reference 71957
Maker reference Maker reference AP8152298

SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298

More information

Quantity required : 2

AP8220269 - GUIDE-CABLE

9
P2R reference P2R reference 56852
Maker reference Maker reference AP8220269

AP8220269-GUIDE-CABLE

More information

Quantity required : 2

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

10
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

More information

Quantity required : 2

Convoyeur G, ext., blu co.;

11
P2R reference P2R reference
Maker reference Maker reference AP8138653

Convoyeur G, ext., blu co.;

Convoyeur G, ext., noir a.;

11
P2R reference P2R reference
Maker reference Maker reference AP8139417

Convoyeur G, ext., noir a.;

Convoyeur D ext., bleu co.;

12
P2R reference P2R reference
Maker reference Maker reference AP8138652

Convoyeur D ext., bleu co.;

Convoyeur D ext., noir a.;

12
P2R reference P2R reference
Maker reference Maker reference AP8139416

Convoyeur D ext., noir a.;

Convoyeur D int., bleu co.;

13
P2R reference P2R reference
Maker reference Maker reference AP8138568

Convoyeur D int., bleu co.;

AP8139414 - CONVOYEUR D INT., NOIR;

13
P2R reference P2R reference 49339
Maker reference Maker reference AP8139414

AP8139414 - CONVOYEUR D INT., NOIR;

More information

Quantity required : 1
