Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 1998-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

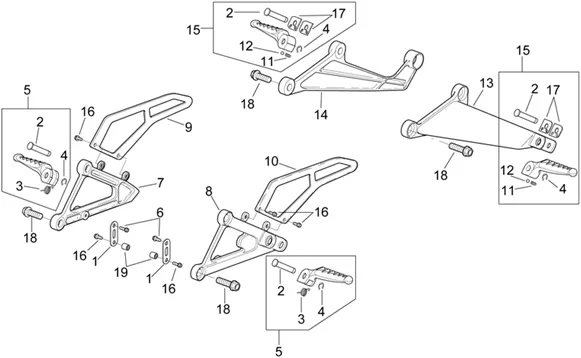

Chassis : 28.03 REPOSE-PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/313/RSV_1000_1998-1999_28.03.PNG)
1 |
AP8134541-PLAQ. FIX. SIDE PANEL More informationQuantity required : 2 |
||||||
|
2 |
Pivot repose-pieds |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/5/4/img/71454.jpg)
3 |
SPRING RETOUR FOOTREST PILOTE OEM APRILIA 660-750-900-1000-1100 SHIVER, RSV, TUONO-AP8121224 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/4/img/71404.jpg)
4 |
CIRCLIPS OF REST FOOT OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8120573 More informationQuantity required : 4 |
||||||
|
5 |
R-pied pilote-paire; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
6 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 3 |
||||||
|
7 |
AP8146336 - PEDANA DX PILOTA COMPLETA More informationQuantity required : 1 |
||||||
|
8 |
AP8146337 - PEDANA SX PILOTA COMPLETA More informationQuantity required : 1 |
||||||
|
9 |
Protec.r-pied pil. D; |
||||||
|
10 |
Protec.r-pied pil. G |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/7/img/71437.jpg)
11 |
SPRING DE MAINTIEN FOOTREST OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8121133 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/3/img/71163.jpg)
12 |
BILLE BLOCAGE FOOTREST OEM PIAGGIO APRILIA DORSODURO 750-900-1200, RS 50-125, RSV-4 1000, TUONO 1000/MOTO GUZZI 1200 SPORT, BELLAGIO, BREVA, GRISO, NORGE-AP8101861 More informationQuantity required : 2 |
||||||
|
13 |
Support r-p. G pass.; |
||||||
|
14 |
Support r-p. D pass.; |
||||||
|
15 |
AP8146466 - R-PIED PASS.-PAIRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
16 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/0/3/img/71703.jpg)
17 |
PLATE FDC PASSENGER FOOTREST OEM PIAGGIO COMMON A LA RANGE-AP8134451 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/0/img/71950.jpg)
18 |
SCREW FLANGE TH (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8152288 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/7/img/71187.jpg)
19 |
RIVET PLASTIQUE FILETE (M6) OEM APRILIA COMMON A LA RANGE-AP8102544 More informationQuantity required : 2 |
