Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 1998-1999 APRILIA

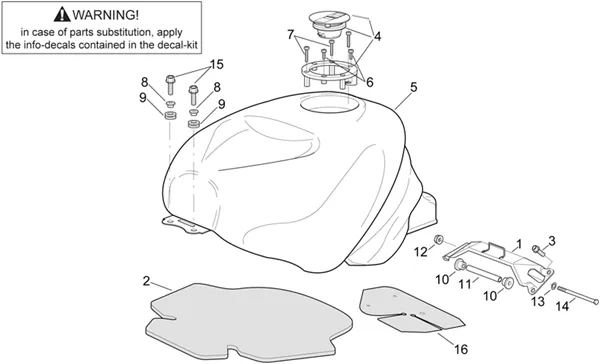

Chassis : 28.15 RÉSERVOIR ESSENCE
Réservoir essence
Search
AP8134370 - SUPPORT RESERVOIR;

1
P2R reference P2R reference 48919
Maker reference Maker reference AP8134370

AP8134370 - SUPPORT RESERVOIR;

More information

Quantity required : 1

AP8117127 - PANN.INSONORIS.RES.;

2
P2R reference P2R reference 46224
Maker reference Maker reference AP8117127

AP8117127 - PANN.INSONORIS.RES.;

More information

Quantity required : 1

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278

3
P2R reference P2R reference 151683
Maker reference Maker reference AP8152278

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278

More information

Quantity required : 4

Bouchon réservoir essence

4
P2R reference P2R reference
Maker reference Maker reference AP8102912

Bouchon réservoir essence

AP8139574 - RESERVOIR NOIR;

5
P2R reference P2R reference 49349
Maker reference Maker reference AP8139574

AP8139574 - RESERVOIR NOIR;

More information

Quantity required : 1

AP8139575 - RES. ESS.V.BLEU CO.;

5
P2R reference P2R reference 49350
Maker reference Maker reference AP8139575

AP8139575 - RES. ESS.V.BLEU CO.;

More information

Quantity required : 1

AP8150454 - VIS

6
P2R reference P2R reference 71890
Maker reference Maker reference AP8150454

AP8150454-SCREW

More information

Quantity required : 4

AP8150453 - VIS

7
P2R reference P2R reference 50880
Maker reference Maker reference AP8150453

SCREW BTR (5X30) OEM PIAGGIO COMMON A LA RANGE-AP8150453

More information

Quantity required : 3

BUSH EN T (DIAMETER INNER MM 6) OEM PIAGGIO COMMON A LA RANGE-AP8221023

8
P2R reference P2R reference 72294
Maker reference Maker reference AP8221023

BUSH EN T (DIAMETER INNER MM 6) OEM PIAGGIO COMMON A LA RANGE-AP8221023

More information

Quantity required : 2

RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030

9
P2R reference P2R reference 71384
Maker reference Maker reference AP8120030

RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030

More information

Quantity required : 2

AP8144062 - CAOUTCHOUC RESERV.

10
P2R reference P2R reference 49596
Maker reference Maker reference AP8144062

AP8144062 - CAOUTCHOUC RESERV.

More information

Quantity required : 2

AP8134419 - DOUILLE ATTACHE RESERVOIR;

11
P2R reference P2R reference 48931
Maker reference Maker reference AP8134419

AP8134419-BUSH ATTACHE TANK

More information

Quantity required : 1

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299

12
P2R reference P2R reference 71958
Maker reference Maker reference AP8152299

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299

More information

Quantity required : 1

WASHER PLATE (6, 4X12, 5) OEM PIAGGIO COMMON A LA RANGE-AP8150014

13
P2R reference P2R reference 71807
Maker reference Maker reference AP8150014

WASHER PLATE (6, 4X12, 5) OEM PIAGGIO COMMON A LA RANGE-AP8150014

More information

Quantity required : 1

AP8150459 - VIS

14
P2R reference P2R reference 50883
Maker reference Maker reference AP8150459

AP8150459-SCREW

More information

Quantity required : 1

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280

15
P2R reference P2R reference 71943
Maker reference Maker reference AP8152280

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280

More information

Quantity required : 2

AP8117128 - PANN.THERMOFUGE RES.;

16
P2R reference P2R reference 46225
Maker reference Maker reference AP8117128

AP8117128 - PANN.THERMOFUGE RES.;

More information

Quantity required : 1
