Vehicle Exploded View - APRILIA TUONO 125 RS 125 Tuono 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

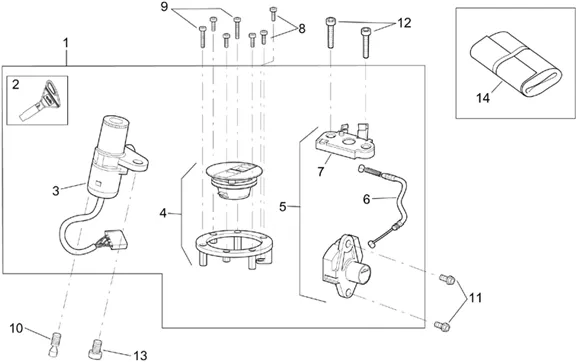

Chassis : 28.34 KIT SERRURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/273/RS_125_Tuono_2003-2004_28.34.PNG)
1 |
AP8104637 - KIT SERRATURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/7/5/img/97075.jpg)
2 |
EBAUCHE DE CLE OEM PIAGGIO APRILIA 50-125 RS, SX, RX-AP8140710 More informationQuantity required : 1 |
||||||
|
3 |
AP8104708 - BLOCCHETTO AVVIAMENTO-BLOC. More informationQuantity required : 1 |
||||||
|
4 |
B044454 - BOUCHON RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
5 |
AP8104709 - SERRATURA SELLA More informationQuantity required : 1 |
||||||
|
6 |
AP8114389-CABLE LOCK More informationQuantity required : 1 |
||||||
|
7 |
AP8102913-PL. FIX. SEAT PASS. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/9/img/71819.jpg)
8 |
SCREW BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8150050 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/1/img/71831.jpg)
9 |
SCREW BTR (5X30) OEM PIAGGIO COMMON A LA RANGE-AP8150176 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/6/img/71866.jpg)
10 |
SCREW A ARRACHEMENT/AUTO-CASSANTE BTR (8X15) OEM PIAGGIO COMMON A LA RANGE-AP8150349 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
11 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/7/6/img/50976.jpg)
12 |
SCREW FLANGE TH (6X40) OEM PIAGGIO COMMON A LA RANGE-AP8152283 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/5/img/66335.jpg)
13 |
SCREW BTR (8X16) OEM PIAGGIO COMMON A LA RANGE-319165 More informationQuantity required : 1 |
||||||
|
14 |
AP8102950 - TROUSSE A OUTILS More informationQuantity required : 1 |
