Vehicle Exploded View - APRILIA TUONO 125 RS 125 Tuono 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

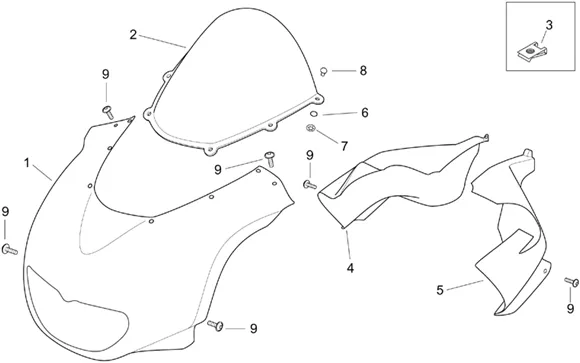

Chassis : 28.08 CARROSSERIE AV. I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/273/RS_125_Tuono_2003-2004_28.08.PNG)
1 |
AP8168841 - FRONTALE CARENA V. More informationQuantity required : 1 |
||||||
|
1 |
AP8178008 - FRONTALE CARENA V.ROSSO T. More informationQuantity required : 1 |
||||||
|
1 |
AP8268207 - FRONTALE CARENA V.SILVER M. More informationQuantity required : 1 |
||||||
|
2 |
AP8168975 - VETRO CUPOLINO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
3 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 10 |
||||||
|
4 |
AP8168838 - CHIUSURA CRUSCOTTO DX More informationQuantity required : 1 |
||||||
|
5 |
AP8168839 - CHIUSURA CRUSCOTTO SX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/1/img/71181.jpg)
6 |
RUBBER DE FAIRING OEM PIAGGIO COMMON A LA RANGE APRILIA-AP8102504 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
7 |
WASHER ELASTIC (5) OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150450 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/0/img/71750.jpg)
8 |
RIVET MOUNTING FAIRING OEM PIAGGIO APRILIA 50-125 RS, TUONO, 1000 CAPONORD, RSV-2, ATLANTIC, SCARABEO-AP8144109 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
9 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246 More informationQuantity required : 4 |
